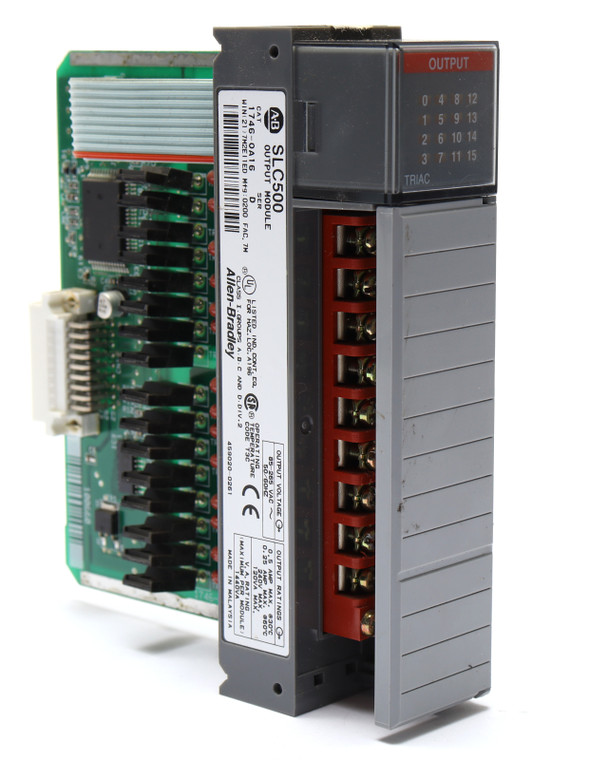

Allen-Bradley 1746-OA16 SLC500 Discrete AC Output Module

Allen-Bradley 1746-OA16 SLC500 Discrete AC Output Module

Condition:
* Used, removed from service in working condition. As pictured.

Additional Notes:
* Series: SLC500
* Part Number/Catalog No.: 1746-OA16
* Brand: Allen-Bradley
* No. of Outputs: Sixteen (16) outputs
* Output Voltage: 120/240 VAC output
* Operating Voltage Range: 85-264 VAC
* Output Delay Time, OFF to ON: 11.0 ms
* Output Delay Time, ON to OFF: 1 ms
* OFF state leakage current: 2 mA
* Load Current: 10 mA
* Backplane Current at 5.1 Volts: 0.370 A
* Continuous current per point: 0.50 A @ 30 °C (86 °F) 0.25 A @ 55 °C (131 °F)
* Continuous current per module, max: 8.0 A @ 30 °C (86 °F) 4.0 A @ 60 °C (140 °F)
* Voltage Range: 85 to 265 Volts AC
* Outputs: 16
* Current/Output at 30 degrees Celsius: 0.5 Amps
* Current/Output at 60 degrees Celsius: 0.25 Amps
* Backplane Current (5 Volts DC): 370 milliamps
* Current/Module (30 degrees Celsius): 8 Amps
* Applications: General Purpose
* Step Response: 60 milliseconds in, 2.5 milliseconds out
* Ambient Operating Temperature: 32 to 140 degrees Fahrenheit

Allen-Bradley
1746-OA16
