40S5-4 1/4 Turnlock Fastener Stud Assembly, 10pc
UNK
$25.95
(No reviews yet)
Write a Review
UNK

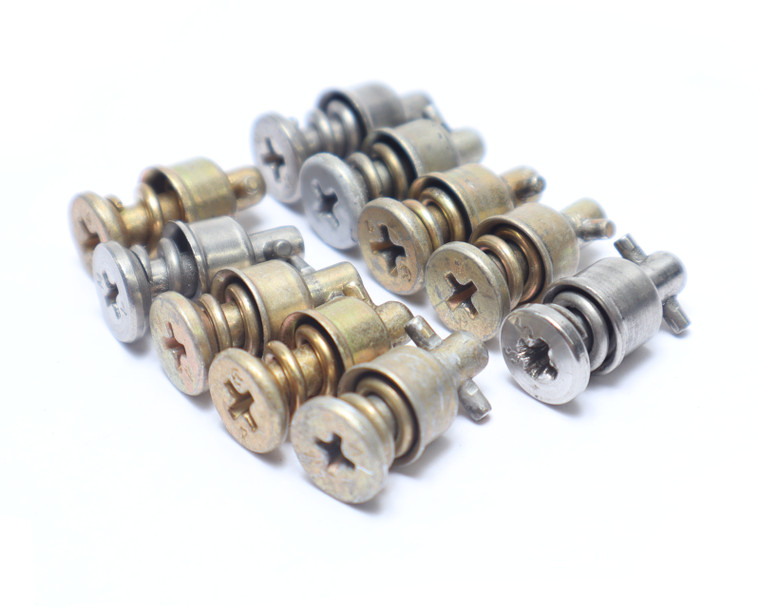

40S5-4 1/4 Turnlock Fastener Stud Assembly, 10pc
40S5-4, 1/4 Turnlock Fastener Stud Assembly, 10 Piece
Condition:
* New Surplus Stock, No OEM Packaging. As Pictured.
Additional Notes:
* Diameter: Between 0.377" and 0.384"
* Distance From Engaging Member To Largest Bearing Surface Of Head: Between 0.433" and 0.443"
* Drive Type: Cross Recess
* Eyelet Length: 0.257"
* Eyelet Outside Diameter: Between 0.341" and 0.348"
* Material: Steel Comp 1009 eyelet or steel comp 1050 eyelet or steel comp 1112 eyelet
* Material: Steel Comp 4037 Stud
* Material: Steel Pin
* Material: Steel Ejector Spring
* Material Accommodated Thickness: Between 0.141" and 0.170"
* Material Specification: Qq-w-470 federal specification single material response ejector spring
* Material Specification: Qq-w-470 federal specification single material response pin
* Stud Assembly Style: Stud Assembly
* Stud Head Height: 0.102"
* Surface Treatment: Cadmium and Chromate
* Surface Treatment Specification: Cl 2 federal specification single treatment response type 2 qq-p-416
* Turnlock Stud Head Style: Stud Head
