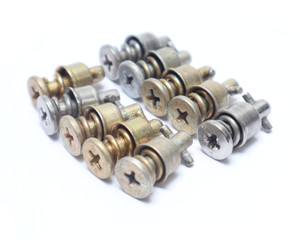

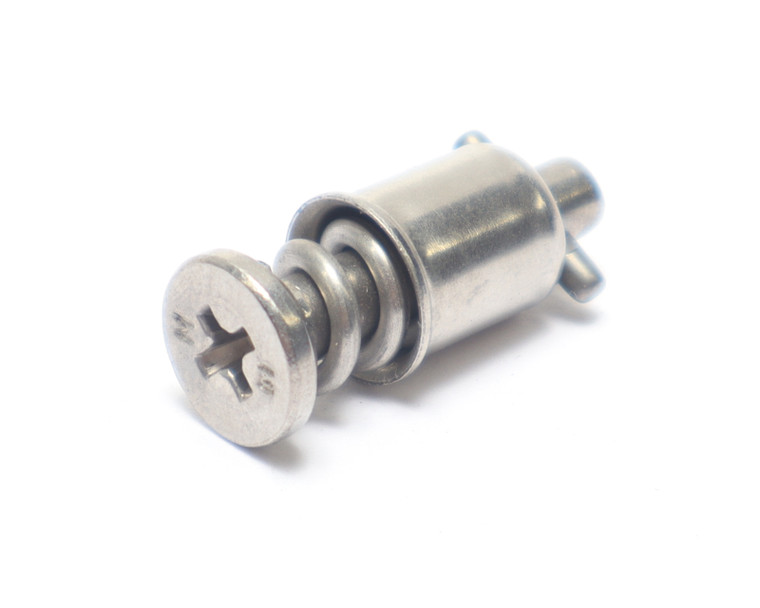

1142012-10 1/4 Turnlock Fastener Stud Assembly, 10pc

1142012-10 1/4 Turnlock Fastener Stud Assembly, 10pc

UNK
SKU:
023893
$24.95
(No reviews yet)
Current Stock:
8
Adding to cart… The item has been added
Description

1142012-10, 1/4 Turnlock Fastener Stud Assembly, 10 Piece

Condition:
* New Surplus Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Material Specification: Astm a108 assn standard single material response eyelet
* Material Specification: Qq-w-470 federal specification single material response pin
* Material Specification: Qq-w-470 federal specification single material response ejector spring
* Material Accommodated Thickness: Between 0.321" and 0.350"
* Material: Steel Ejector Spring
* Material: Steel pin
* Material: Steel Comp 4037 Stud
* Material: Steel comp 1009 eyelet or steel comp 1050 eyelet or steel eyelet
* Eyelet Outside Diameter: Between 0.341" and 0.348"
* Eyelet Length: Between 0.432" and 0.452"
* Drive Type: Cross Recess
* Distance From Engaging Member To Largest Bearing Surface Of Head: Between 0.693" and 0.703"
* Diameter: Between 0.377" and 0.384"
* Securing Device Type: Spring
* Stud Assembly Style: Stud Assembly
* Surface Treatment: Cadmium and Chromate
* Surface Treatment Specification: Class 2 federal specification single treatment response type 2 qq-p-416
* Turnlock Stud Head Style: Flat Countersunk

UNK
1142012-10
40S5-10S
