40S5-3 1/4 Turnlock Fastener Stud Assembly, 15pc

40S5-3 1/4 Turnlock Fastener Stud Assembly, 15pc

UNK
SKU:
023894
$24.95
(No reviews yet)
Current Stock:
12
Adding to cart… The item has been added
Description

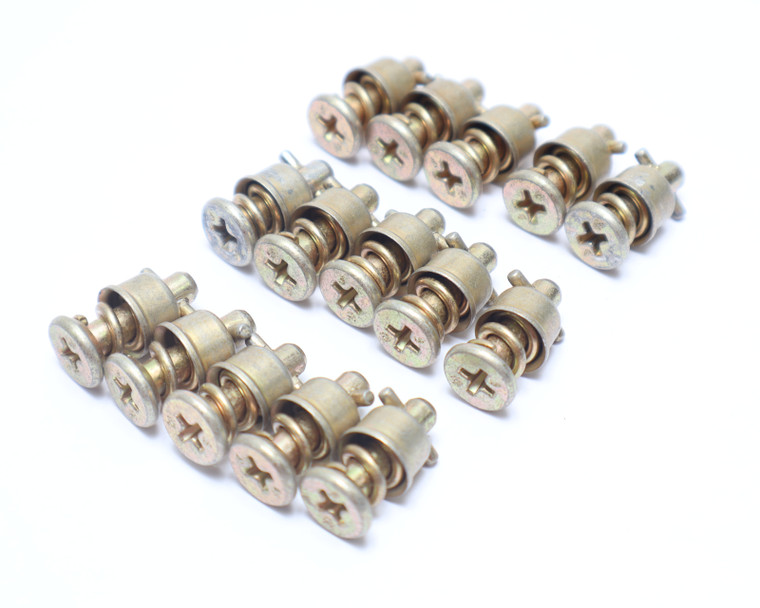

40S5-3, 1/4 Turnlock Fastener Stud Assembly, 15 Piece

Condition:
* New Surplus Stock, No OEM Packaging. As Pictured..

Additional Notes:
* Diameter: 0.377" minimum and 0.384" maximum
* Turnlock Stud Head Style: Stud Head
* Stud Assembly Style: Stud Assembly
* Distance From Engaging Member To Largest Bearing Surface Of Head: 0.403" minimum and 0.413" maximum
* Eyelet Outside Diameter: 0.341" minimum and 0.348" maximum
* Eyelet Length: 0.257" nominal
* Material Accommodated Thickness: 0.111" minimum and 0.140" maximum
* Drive Type: Cross Recess
* Stud Head Height: 0.102" nominal
* Material Specification: Qq-w-470 fed spec single material response ejector spring
* Material Specification: Qq-w-470 fed spec single material response pin
* Surface Treatment: Cadmium overall and chromate overall
* Surface Treatment Specification: Qq-p-416,ty 2,cl 2 fed spec single treatment response overall

UNK
40S5-3
