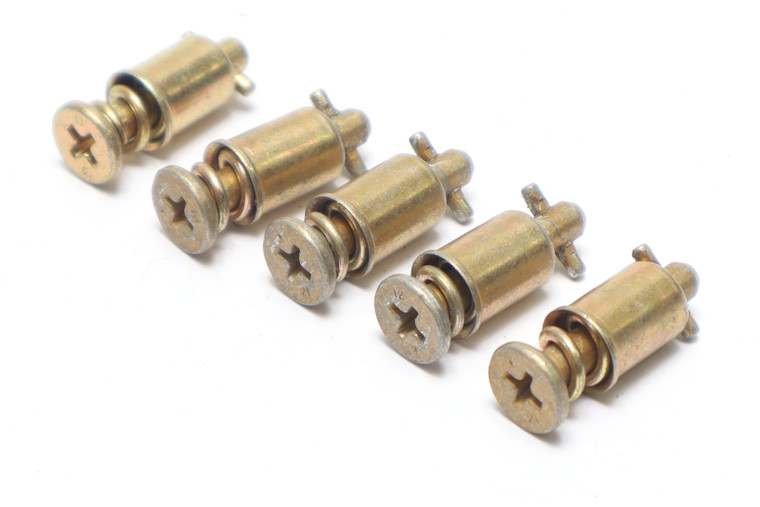

40S5-12 1/4 Turnlock Fastener Stud Assembly, 5pc

40S5-12 1/4 Turnlock Fastener Stud Assembly, 5pc

UNK
SKU:
023883
$21.95
(No reviews yet)
Current Stock:
6
Adding to cart… The item has been added
Description

40S5-12, 1/4 Turnlock Fastener Stud Assembly, 5 Piece

Condition:
* New Surplus Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Diameter: Between 0.377" and 0.384"
* Distance From Engaging Member To Largest Bearing Surface Of Head: Between 0.713" and 0.723"
* Drive Type: Cross recess
* End Application: Ch-53a/d/e
* Eyelet Length: 0.502"
* Eyelet Outside Diameter: Between 0.341" and 0.348"
* Material: Steel comp 302 pin
* Material: Stainless steel stud
* Material Accommodated Thickness: Between 0.261" and 0.410"
* Material Specification: 300 series iaw astm a276 or astm a580 assn standard single material response or ams-qq-s-763 federal specification single material response stud
* Material Specification: Astm a313 assn standard single material response or ams-qq-s-763 federal specification single material response pin
* Part Name Assigned By Controlling Agency: Stud assembly flat head cross recess
* Special Features: Astm a582 or astm a666 astm a240 spacer material is 300 series cres per astm a666 or astm a240;spring material is 302 cres per astm a313 or ams-qq-s-763;cup material is 300 series cres per astm a167
* Stud Assembly Style: Stud assembly
* Stud Head Height: 0.102"
* Surface Treatment: Passivate
* Surface Treatment Specification: Astm a967 assn standard single treatment response or ams2700 national std/spec single treatment response
* Turnlock Stud Head Style: Stud head

UNK
40S5-12
