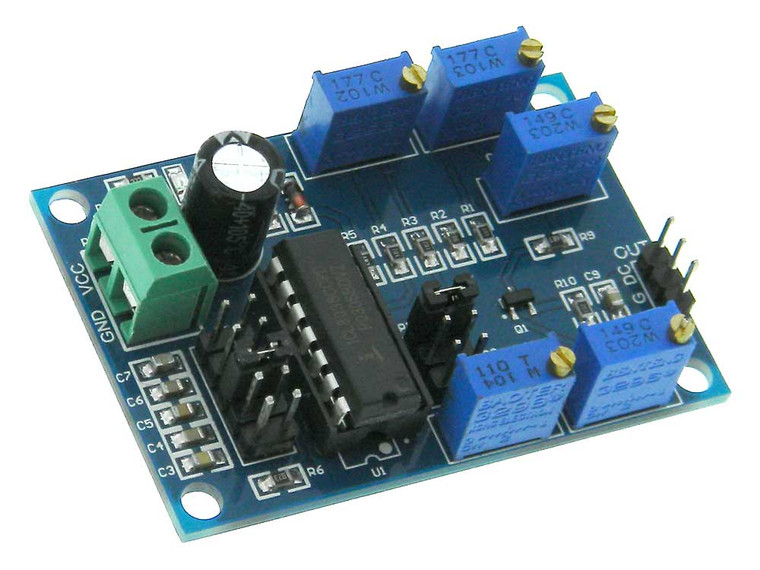

Waveform Generator Module 8038

Waveform Generator Module 8038

MPJA
SKU:
026157
$9.95
(No reviews yet)
Current Stock:
15
Adding to cart… The item has been added
Description

Waveform Generator Module 8038

Condition:
* New Surplus Stock, In OEM Packaging. As Pictured.

Additional Notes:
* Handy module that generates selectable Sine, Square or Trianglar waveforms.
* Power: 12-15 Volt DC
* Adjustable Output Level
* Distortion: 1% Sine Wave
* Square Wave Duty Cycle Adj. 2-98%
* Triangle Wave Linearity: 0.1%
* Range: 10-450 KHz in 5 Jumper Selectable Overlapping Ranges:
       • ~10 Hz-450 Hz
       • ~90 Hz-1.5 KHz
       • ~940 Hz-15 KHz
       • ~6 KHz-120 KHz
       • ~20 KHz-450 KHz
* Adjustment Pot For Fine Frequency Adj.
* AC & DC Coupled Outputs
* Power LED
* Output: Header Pins 0.1 Pitch
* Power: Terminal Strip
* L: 2-5/32" x W: 1-1/2" x H: 3/4"
