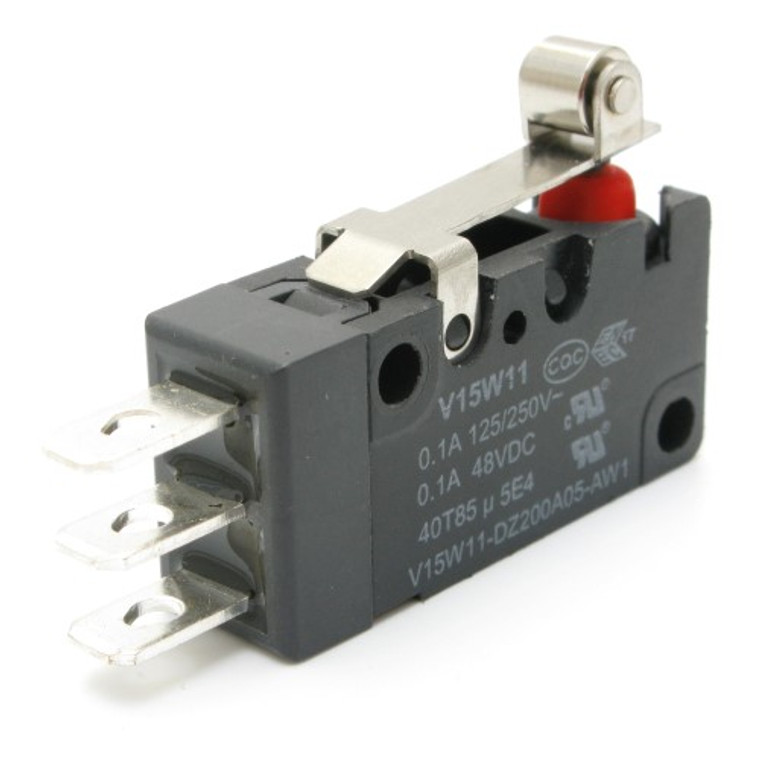

Watertight Miniature Snap Switch with Roller SPDT
The Micro Switch V15W is a miniature-sized basic switch designed for harsh-duty, wash down areas.
Rugged yet precise, this Series gives highly accurate machine control for turning circuits on and off.
N.O. / N.C. S.P.D.T. Contacts
Rated: 0.1 Amp at 125/250 Volt AC, 48 Volt DC
Overall length: 1.65"
Switch body dimension: 33mm (L) x 10.3mm (D) x 15.9mm (H)
0.187" Push-on terminals or solder
Short Lever with Roller
High sealing capability with an IP67 rating
Approvals: UL, cUL, ENEC, CQC
