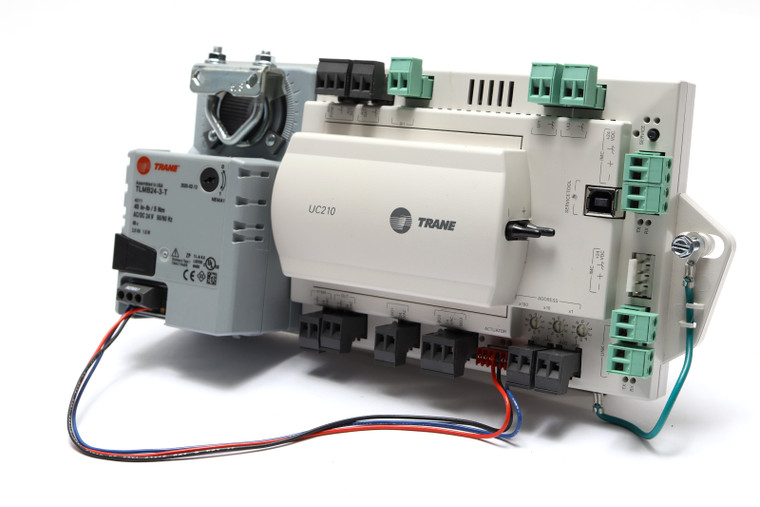

Trane TLMB24-3-T 24V Damper Actuator & UC210 Programmable VAV Controller
Condition:
* New surplus stock, no OEM packaging. As pictured.
Additional Notes:
TLMB24-3-T 24V Damper Actuator
* Voltage AC/DC: AC/DC 24 V
* Power Consumption (Running): 1.5 W
* Power Consumption (Holding): 0.2 W
* Power Consumption For Wire Sizing: 2.5 VA
* Torque: 45 in-lb [5 Nm]
* Control Type: Floating/3-point
* Direction Of Motion Motor: selectable with switch 0/1
* Manual Override: External push button
* Angle of Rotation: 95
* Running Time (Motor): 95 s / 90°
* Degree Of Protection NEMA: NEMA 1
* Enclosure Type: UL Enclosure Type 1
* Ambient Temperature: -22 to +122°F [-30 to +50°C]
UC210 Programmable VAV Controller
* Space temperature control
* Flow tracking
* Ventilation flow control
* Power: 20-4–27.6 Vac, (24 Vac ±15% nominal, 50–60 Hz, 10.5 VA plus 1 VA per 20mA of 24 VDC load plus 12 VA maximum per binary load
* Environmental Rating (Enclosure): NEMA 1
* Installation: U.L. 840: Category 3
* Pollution: U.L. 840: Degree 2
* Agency Compliance:
• UL916 PAZX- Open Energy Management Equipment
• UL94-5V Flammability
• CE Marked
• FCC Part 15, Subpart B, Class B Limit
• AS/NZS CISPR 22:2006
• VCCI V-3/2008.04
• ICES-003, Issue 4:2004
• Communications BACnet MS/TP, supports BACnet protocol ASHRAE 135-2004 and meets BACnet Testing Laboratory (BTL) as an Application Specific Controller (ASC) profile device
• Suitable for Plenum mounting
