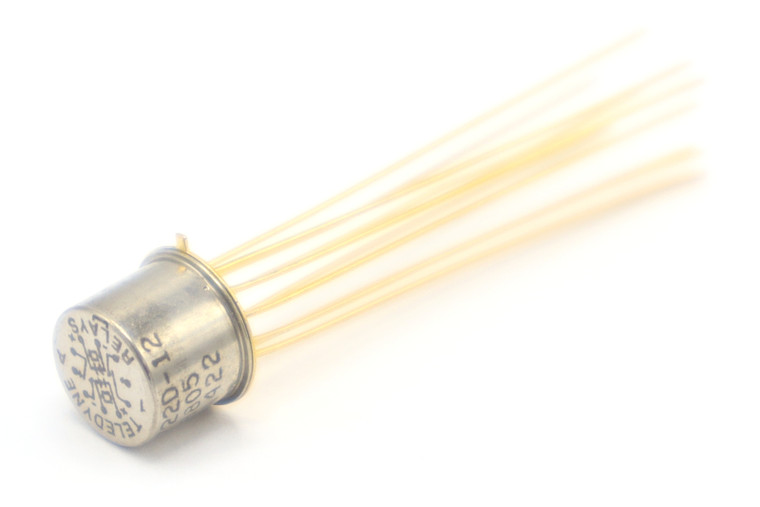

Teledyne 722D-12 Magnetic Latching High Frequency DPDT Relay

Teledyne 722D-12 Magnetic Latching High Frequency DPDT Relay

Teledyne ISCO
SKU:
022792
$99.95
(No reviews yet)
Current Stock:
8
Adding to cart… The item has been added
Description

Teledyne 722D-12 Magnetic Latching High Frequency DPDT Relay

Condition:
* New surplus stock, no OEM packaging. As pictured.

Additional Notes:
* Coil Voltage: 12VDC (nom.) / 16VDC (max.)
* Coil Resistance: 500Ω ±20%
* Latch & Reset Voltage: 9.0VDC
* Contact Arrangement: 2 Form C (DPDT-NO, NC)
* Contact Load Rating (DC):
     • Resistive: 1A @ 28VDC
     • Inductive: 200mA @ 28VDC (320mH)
     • Lamp: 100mA @ 28VDC (320mH)
     • Low level: 10-50µA @ 10-50mV
* Contact Load Rating (AC):
     • Resistive, case not grounded: 250mA @ 115VAC, 60/400Hz
     • Resistive, case grounded: 100mA @ 115VAC, 60/400Hz
* Form Factor: TO-5


Teledyne
722D-12
