Tektronix TM501 Frame, AM503 Current Probe Amp & A6302 50MHz 20A Current Probe

Tektronix TM501 Frame, AM503 Current Probe Amp & A6302 50MHz 20A Current Probe

SKU:
017020
Availability:
$199.95
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description

Tektronix TM501 Single-Bay Mainframe
AM503 Current Probe Amplifier
A6302, 50MHz, 20 Amp Current Probe

Condition:
* Used. Mainframe is missing fuse and fuse cap.
* Sold as-is, unable to test.

Additional Notes:
TM501
* Bays: 1
* Max. Power: 120W
* Dimensions (HxWxL): 6.0" x 3.9" x 15.3"

AM503
* Bandwidth: DC to 50MHz
* Sensitivity: 1 mA/Div to 5 A/Div
* Range: 20 Amp continuous, 50 Amp peak

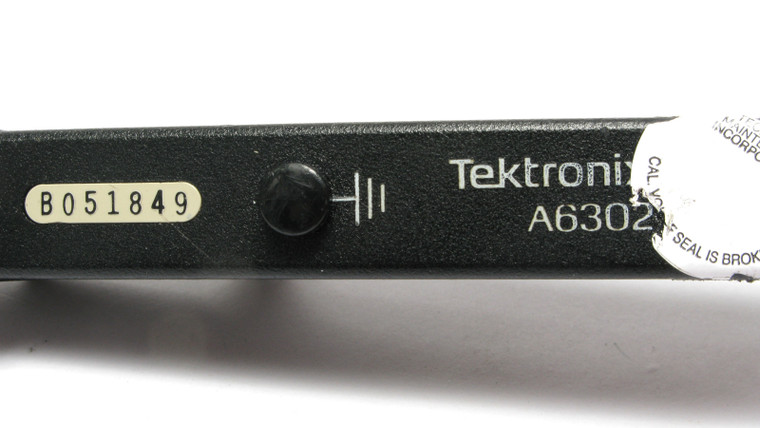

A6302
* Bandwidth: DC-50 MHz (6302XL: 17 MHz)
* Input range: 20 A continuous, 50 A peak, ≤100 A · μs (with 11A16: 10.5 A continuous), derate to 2.5 A @ 10 MHz
* Sensitivity: 1 mA/Div to 5 A/Div, 1−2−5 (with AM503)
* Noise: ≤250 μA (@ ≤200 MHz amplifier BW)
* Insertion impedance: 0.1 Ω @ 1 MHz, 0.5 Ω @ 50 MHz
