Tektronix P6616 16-Channel General-Purpose Logic Probe Kit

Condition:

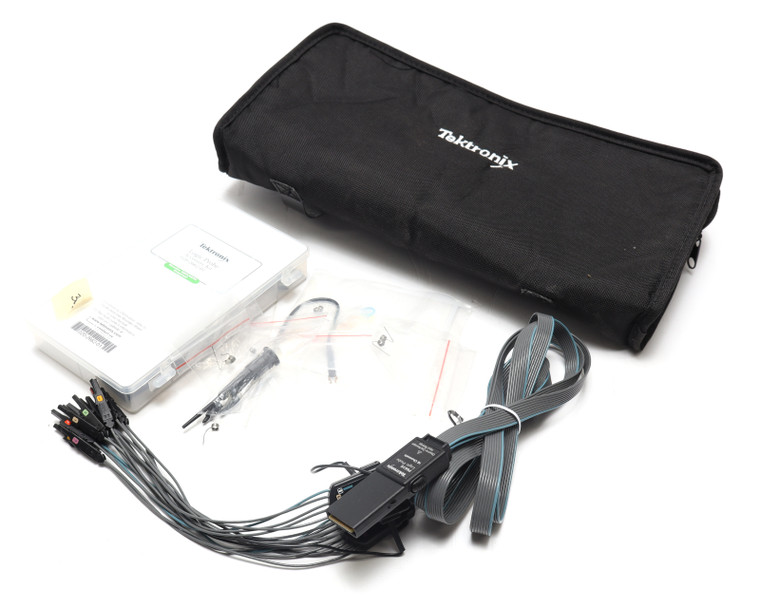

* Used, removed from service in working condition. As pictured.

Additional Notes:
* Connects mixed-signal oscilloscope to digital buses and signals on target systems
* 16 data channels split between two lead sets (GROUP 1 and GROUP 2)
* First lead in each set is identified by blue insulation, and remaining seven leads are gray
* All leads include ground connection at tip
* Connect probe leads separately to target systems, or group leads together using probe tip holders
* Input resistance: 100 kOhm +/-1.0%
* Input capacitance: 3.0 pF
* Input signal swing minimum: 400 mV p-p
* Input signal swing maximum: 30 V p-p, ≤200 MHz (centered around DC threshold voltage) at probe tip; 10 V p-p, ≥200 MHz (centered around DC threshold voltage) at probe tip
* Maximum nondestructive input signal: 30 V p-p, 42 V peak, +/-50 VDC
* Threshold voltage: +/- 40 V
* Minimum detectable pulse width: 1 ns
* Maximum input toggle rate: 500 MHz
* Digital channel-to-digital channel skew: 200 ps
* Probe length: 1.0 m (3.28 ft.)
* For use with MSO5000 and MSO4000B Series
