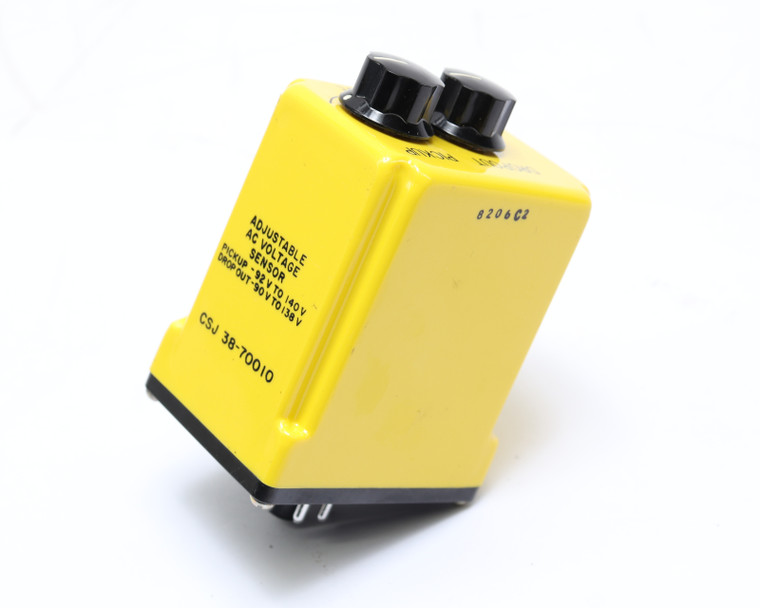

Potter & Brumfield CSJ-38-70010 General Purpose Relay DPDT, 120VAC

Potter & Brumfield CSJ-38-70010 General Purpose Relay DPDT, 120VAC

Potter Brumfield
SKU:
024197
$89.95
(No reviews yet)
Current Stock:
38
Adding to cart… The item has been added
Description

Potter & Brumfield CSJ-38-70010, General Purpose Relay DPDT, 12 Volt AC

Condition:
* New Old Stock, In OEM Packaging. As Pictured.

Additional Notes:
* Mounting Type: Socketable
* Coil Voltage: 120 Volt AC
* Contact Form: DPDT (2 Form C)
* Contact Rating (Current): 10 Amp
* Switching Voltage: 120 Volt AC, 28 Volt DC - Max
* Load - Max Switching: 1200VA, 280 Watt
* Coil Type: Non Latching
* Termination Style: Plug In, 8 Pin (Octal)
* Must Operate Voltage: Adjustable
* Must Release Voltage: Adjustable
* Operate Time: 25 ms
* Operating Temperature: -10°C ~ 55°C
* Approval Agency: CSA, UR

Potter & Brumfield
CSJ-38-70010
