TE Connectivity/AMP 320634 PIDG 12-10AWG #6 Stud Ring Terminal, 500pcs

TE Connectivity/AMP 320634 PIDG 12-10AWG #6 Stud Ring Terminal, 500pcs

Amp
SKU:
009012
Availability:
$35.00
(No reviews yet)
Current Stock:
7
Adding to cart… The item has been added
Description

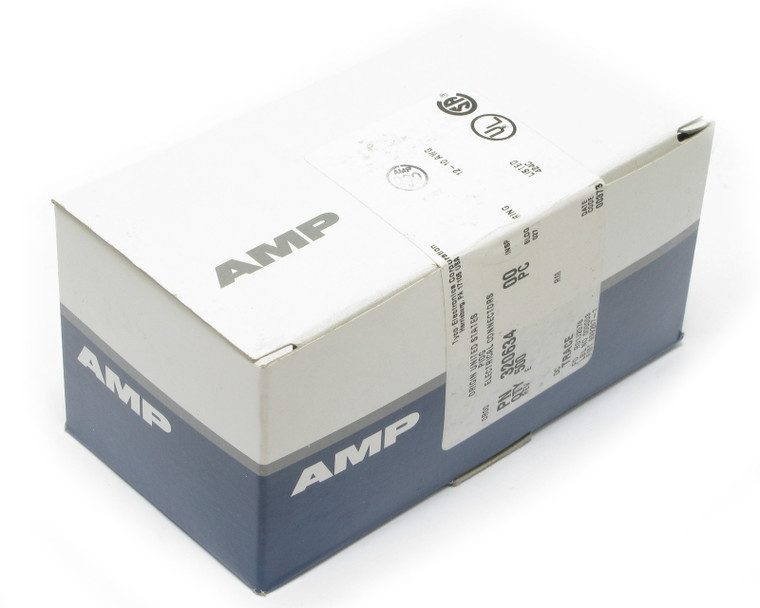

TE Connectivity/AMP 320634 PIDG 12-10 Gauge #6 Stud Ring Terminal, 500 Piece Lot

Condition:
* New Stock, In OEM Packaging. As Pictured

Additional Notes:
* Quantity: 500 Piece Lot
* Sealable: No
* Barrel Type: Closed Barrel
* Wire/Cable Type: Regular Wire
* Insulated: Yes
* Insulated Wire Support: Yes
* Support Style: Insulation Support
* Stud Size, #6, M3.5
* Barrel Style: Long
* Shape Code: RING-041
* Wire/Cable Composition: Solid or Stranded
* Number of Holes: 1
* Max. Voltage: 300 Volt
* Plating Material: Copper, Tin
* Insulation Sleeve Material: Copper
* Insulation Material: Nylon
* Terminal Type: Ring Tongue
* Terminal Orientation: Straight
* Stud Diameter: 0.145" (3.68mm)
* Tongue Thickness: 0.04" (1.02mm)
* Wire Size: 12-10 Gauge (3-6mm²)
* Wire Insulation Diameter: 0.15" - 0.23" (3.81mm - 5.84mm)
* Overall Length: 0.953" (24.21mm)
* Operating Temperature Range: 105°C
* Barrel Color: Yellow

AMP
320634
