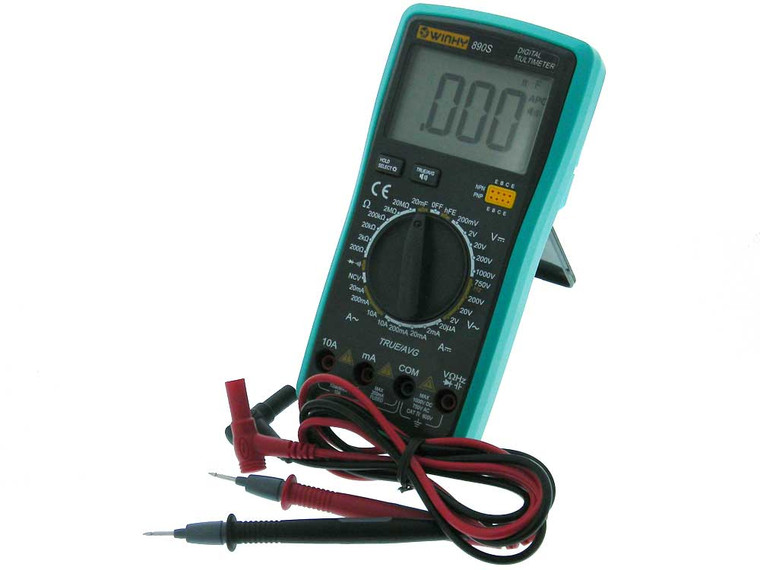

Talking Digital Multimeter

Talking Digital Multimeter

Additional Notes:
* Not recommended for the visually impaired
* Talking, High tech. 10 function, Backlit, 3-1/2" digit hand held meter with 1" LCD display.
* True RMS/Average Measurement Selection
* 9V battery not included, test leads, instructions
* Fuse Overload protection.
* CE listed; IEC 1010 Cat III-1000V Compliant
* NOTES:
       1: To Turn OFF Voice; Press and Hold (~3sec.) "TRUE/AVG" Button
       2: To Read Frequency: Select 750VAC Range- Press”HOLD/SELECT"
       3: To Turn on Backlight: Press & Hold (~3sec.) "HOLD/SELECT" Button; Backlight will turn off after ~10seconds
       4: Meter is Auto Off will turn off after ~20min
Specifications
* DC VOLTS & CURRENT
       • Volts: .2,2,20,200,1000V
       • Accuracy: .5% + 3 Counts on 200mV-200V
       • .8% + 10 Counts 1000VDC
       • Current: 20uA, 2mA, 20mA, 200mA,10A
       • Accuracy: .8% + 10 Counts on 20ua & 2mA
       • 2% + 30 Counts on 20mA-10A
* AC VOLTS (RMS/AVG)
       • Frequency Response: Sine/Triangle: 40Hz-1KHz
       • Other Waveform: 40Hz-200Hz
       • Volts: .2,2,20,200,750V
       • Accuracy: .8% + 5 Counts on .2-200V
       • 1.2% +10Counts on 750V
       • Current: 20mA, 200mA, 10A
       • Accuracy: 2% + 30 Counts
* RESISTANCE
       • Ranges: 200,2K,20K,200K,2M,20M Ohms
       • Accuracy: .8% + 5 Counts on 200 ohm
       • .8% + 3 Counts on 2K-2M
       • 1% + 25 Counts on 20M
* CAPACITANCE
       • Ranges: 20nF, 200nF, 2uF, 20uF, 200uF, 2mF, 20mF
       • Accuracy: 3.5% + 20 Counts on 20nF-20uF
       • 5% + 10 Counts on 200uF-20mf
* OTHER FUNCTIONS
       • Frequency: <3KHz (Select 750VAC Range- Press ”Hold/Select” Button
       • Diode Test: ~3-4VDC open circuit
       • hFE: ~1mA test current
       • NCV: “Near Field AC” Beep Rate High for near/Low for far
       • L: 7-1/4" W: 3-1/2 T: 1-7/8"
