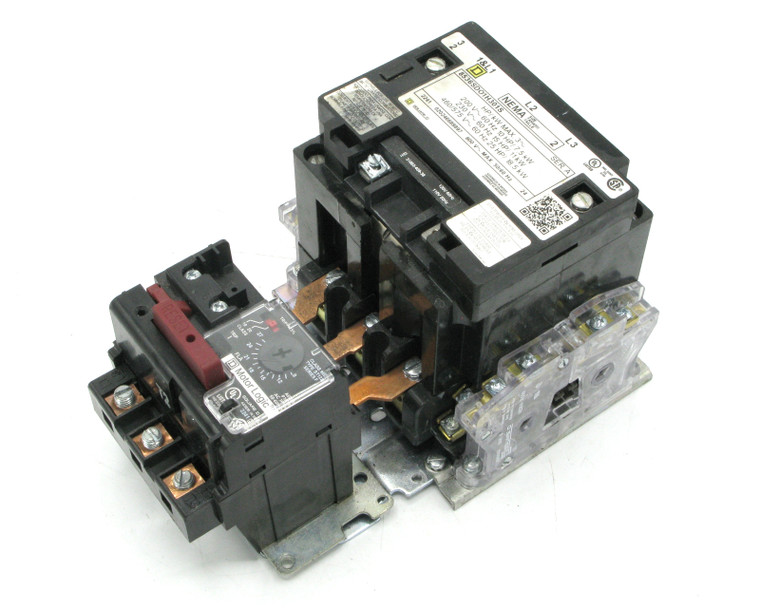

Square D 8536SDO1V01H30S NEMA Size 2, 25 HP, 45 Amps, 3-phase Motor Starter

Square D 8536SDO1V01H30S NEMA Size 2, 25 HP, 45 Amps, 3-phase Motor Starter

Condition:
* Used, removed from service in working condition. Unable to test. As pictured.

Additional Notes:
* Type: Non-reversing motor starter
* NEMA Size: 2
* Rated Current: 45 Amps
* No. of Poles: 3
* Max. Voltage Rating: 600VAC
* Phase: 3
* Type of Overload: Solid state Motor Logic class 10/20
* Power Rating:
     • 10 HP @ 200VAC
     • 15 HP @ 230VAC
     • 25 HP @ 460VAC
     • 25 HP @ 575VAC
* SCCR:
     • Circuit-breaker 100A max: 100kA @ 480VAC
     • Fuse J 100A max: 100 kA @ 600VAC
     • Fuse T 100A max: 100 kA @ 600VAC
     • Fuse RK1 100A max: 100 kA @ 600VAC
     • Fuse RK5 100A max: 100 kA @ 600VAC
* Coil Voltage: 24VAC, 60Hz
* Control Circuit Type: Separate control circuit
* Auxiliary Contacts: Without
* Terminal Type: Screw clamp terminals
* Dimensions (HxWxD):7.81" x 4.31" x 4.94" (198.37mm x 109.47mm x 125.48mm)
* Enclosure Type: Not rated (open device)

Square D
8536SDO1V01H30S
