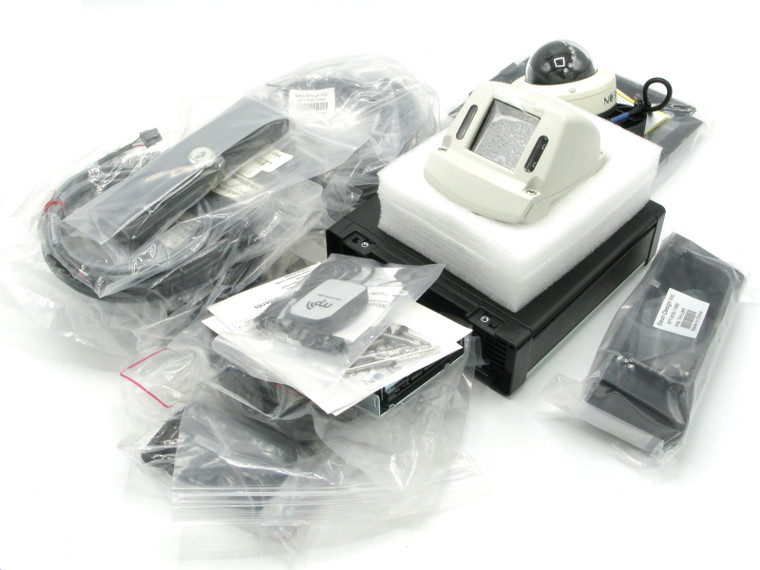

Seon Design TH4 DVR School / Tour Bus Surveillance System

Seon Design TH4, DVR School / Tour Bus Surveillance System

Condition:
* New, Surplus Stock.

Additional Notes:
* Contains:
       • TH4 Video Recorder with hard drive, locking front cover, cable cover, fasteners, and mounting plate.
       • Analog High Definition Cameras (HD1W and HD1Q)
       • TH-LBR
       • TH-MPV
       • TH-LBF
       • G-SENSOR-MDL
       • ZSE-TH-H500G
       • HDIA20
       • HE1HD
       • G-Sensor-Cable
       • Sensor GPS
       • GPS4-CBL
       • WT1
       • HE2HD

TH4 4-Channel High-Definition Hybrid DVR
* Record up to four high-definition camera views with audio at up to 30 FPS on all channels simultaneously.
* Choose any combination of standard or HD cameras with simple plug & play installation.
* Support your existing cameras while upgrading to HD with your choice of recording resolution from D1 to 720p.
* Quality Settings: Adjustable, 4 Levels
* Auto Overwrite: Selectable On/Off
* Display Modes: Single camera, four-up on the DVR video out, Single camera, four-up on the vMax Web
* Playback Rate: Frame advance, FFD and REV playback up to 32x
* Search Function: Segment, alarm, date/time, event
* Primary: Up to 2 TB (HDD)

HD1QxxAI Series High-Definition Interior Dome Camera
* Capture high-definition images in up to 720p resolution with infrared LEDs and WDR back light compensation for challenging light conditions
* The low-profile dome housing allows for more discreet placement to better blend with vehicle decor
* Simple plug and play installation with no complicated programming.
* Enclosure Material: Solid Aluminum Alloy
* Dome Material: Impact-Resistant Polycarbonate, Antiglare, Scratch-Resistant Hardcoating, UV Protected
* Gimbal Rotate: 360°, Pan: 360°, Tilt: 70° (Assuming Included Shim Kit is Used)
* Image sensor: 1/3” CMOS 1.3MP
* True Day/Night: IR Cut Filter
* Shutter speed: Auto
* Main Stream Resolution: 720p (16:9 Aspect Ratio)

HD1W High-Definition Wedge Camera
* Capture high-definition images in up to 720p resolution outside the bus
* Simple plug ‘n play installation with no complicated programming.
* IP67-rated aluminum housing stands up in severe weather conditions
* Enclosure Material: Solid aluminum alloy, powder coated
* Viewing Window: Impact-resistant polycarbonate, scratch-resistant UV protected
* Mounting Options: Surface or Mounting Post
* Wiring Options: 20’(6m), 50’(15m), 75’(23m)
* Gimbal Rotate: 360°, Pan: 7.5°, Tilt: 10° ~ 37.5°

Seon Design
TH4
