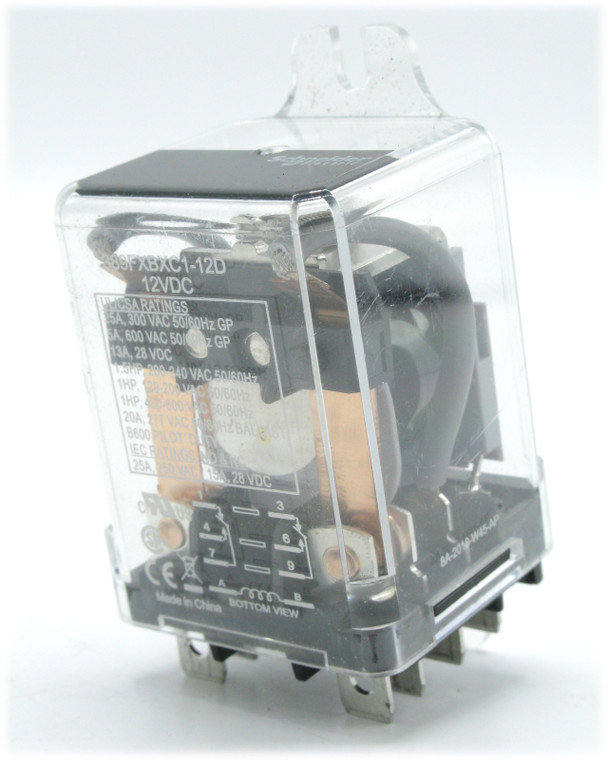

Schneider Electric 389FXBXC1-12D DPDT Power Relay, 25 Amps, 12VDC Coil

Schneider Electric 389FXBXC1-12D, Power Relay

Condition:
* New Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Switch Configuration: DPDT
* Contacts: 2 N.C. + 2 N.O.
* Max. Current: 25 Amps
* Coil Voltage: 12 Volt DC
* Rated Operational Current:
     • 25 Amp @ 300 Volt AC (On Resistive Load) Conforming to UL
     • 5 Amp @ 600 Volt AC (On Resistive Load) Conforming to UL
     • 13 Amp @ 28 Volt DC (On Resistive Load) Conforming to UL
     • 22 Amp @ 120 Volt AC (Full Load) Conforming to UL
     • 20 Amp @ 277 Volt AC (Ballast) Conforming to IEC
     • 25 Amp @ 250 Volt AC-1 (NO/NC) conforming to IEC
     • 15 Amp @ 28 Volt DC-1 (NO/NC)
* Motor Power:
     • 1.5 HP @ 200/240 Volt AC, 50/60 Hz
     • 1 HP @ 120-200 Volt AC, 50/60 Hz
     • 1 HP @ 600 V olt AC, 50/60 Hz
* Connections Terminals: Quick Connect
* Mounting: Flange

Schneider Electric
389FXBXC1-12D
