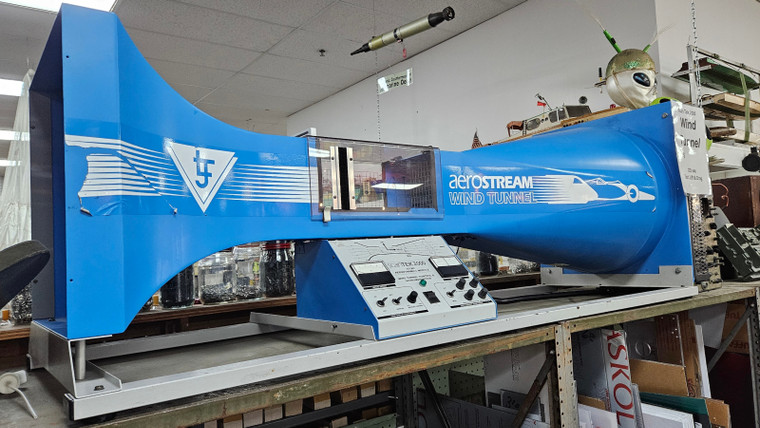

Scantek 2000 Model ST 180 Wind Tunnel Aerodynamic Test Equipment

Scantek 2000 Model ST 180 Wind Tunnel Aerodynamic Test Equipment

Condition:
* Used, removed from service in working condition.
* Powered up and tested fine for basic operations, unable to test further.
* As pictured.

Additional Notes:
* Medium scale wind tunnel with electronic instrumentation for wind speed, lift, and drag.
* A variable speed fan provides wind speeds of up to 40 mph.
* Test Section Dimensions (LxWxD): 8” x 8” x 12”
* Special inlet design and taper tail section provides a smooth laminar air flow in the test section.
* Steel construction
* Bench mount configuration.
* Overall Dimensions (LxWxH): 68" x 22" x 22" (173cm x 55.9cm x 55.9cm)
* Instrument post with screw on test model platform.
* Instrument post operates strain gauge mechanism.
* Mechanical stops limit movement of instrument post to safeguard strain gauges.
* Instrumentation Panel Measurement of wind speed: Propeller with low friction DC motor and signal conditioning circuit.
* 0 to 10 scale meter representing 0 - 18 m/s (40 mph)
* Measurement of Drag: Strain gauge transducer with electronic signal conditioning circuit. 0 to 10 scale meter range 1 = 0 - 12.5g (0.44 oz) range 2 = 0 - 25g (0.88 oz) range 3 = 0 - 50g (1.76 oz) range 4 = 0 - 100g (3.53 oz)
* Maximum lift reading of 100g Maximum downforce reading of 100g (plus a nominal weight of 40g test model)

Scantek 2000
ST 180
