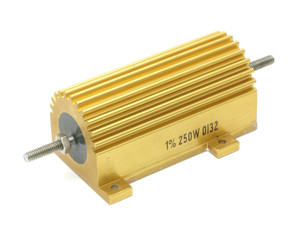

Riedon UAL-250 42-ohm 250W 1% Aluminum Housed Wirewound Resistor

Riedon UAL-250 42-ohm 250W 1% Aluminum Housed Wirewound Resistor

Riedon
SKU:
011561
Availability:
$24.00
(No reviews yet)
Current Stock:
11
Adding to cart… The item has been added
Description

Riedon UAL-250,  42 Ohm, 250 Watt, 1 Percent, Aluminum Housed Wirewound Resistor

Condition:
* Used, tested for basic operation.
* May have thermal paste residue on bottom
* May have minor dings and scratches, as well as installation marks.
* Picture is representative; your actual item may vary slightly.

Additional Notes:
* Power Rating:
     • Commercial: 250 Watt (0.125" Alum. Plate, 294 inch² or equiv)
     • MIL: 120 Watt (0.125" Alum. Plate, 294 inch² or equiv)
     • Free Air: 100 Watt
* MIL-R-39009 / MIL-R-18546 Style: RER-80 / RE-80
* Resistance: 42 Ohm
* Tolerance: 1 Percent
* Temperature Range: -67 Degree F to +527 Degree F (-55 Degree C to +275 Degree C)
* Dielectric Strength: 5500 Volt AC
* Construction:
     • Centerless ground ceramic core
     • Tinned copper or copperweld leads
     • High-temperature epoxy molding compound
     • Anodized aluminum housing
     • All welded terminations
* Dimensions, Excluding Terminals and Flanges (LxWxH): 4.5" x 2.125" x 2.19"
* Dimensions, Overall (LxWxH): 7.0" x 3.0" 2.19" (178 x 76.2 x 55.6mm)

Riedon
UAL-250-42
