RG-214/U Coax Double Shielded Silver Plated

RG-214/U Coax Double Shielded Silver Plated

Coleman Cable
SKU:
009870
$2.50
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 100 or above and get 10% off
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description

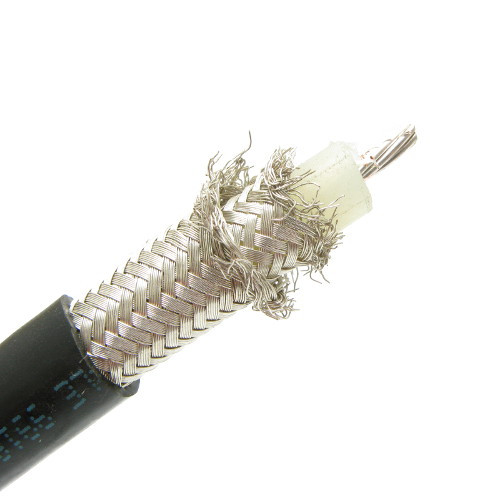

RG 214/U Coax Double Shielded with Black PVC Jacket

Sold by the Foot, Available on 1000 Foot Reels.
Cable Type: Flexible RG-214/U
Impedance: 50 Ohm
Double Shielded: 1st Shield 96%, 2nd Shield 98% Coverage
Dielectric Insulation: PE (Foam Polyethylene)
Center Conductor Material and Plating: Copper / Silver
Center Conductor Diameter: 0.089"
Center Conductor Construction: 7-Strand (13 AWG)
Double Shield Materials: Silver Plated Copper Braid
Nominal Core O.D.: 0.285"
Nominal O.D.: 0.425"
Jacket Material and Color: PVC, Black
Jacket Surface Printing:
COLEMAN CABLE 991075 E100316-H RG 214/U 13 AWG TYPE CL2X 75C (UL) OR AWM STYLE 1354
Cable has Sequential Footage Markings
Maximum Operating Frequency: 11 GHz
Nominal Capacitance pF/ft: 30.8 pF
Maximum Temperature Rating: 75° C
One Time Minimum Bend Radius: 1.57"
Rating: UL Listed as CL2X
UL Recognized Component AWM Style 1354
RoHS Compliant

Coleman Cable
991075
