Resistor Subststution Board - 0.1 Ohm / 9,999,999.9 Ohms

Resistor Subststution Board - 0.1 Ohm / 9,999,999.9 Ohms

SKU:
025716
$6.95
(No reviews yet)
Current Stock:
3
Adding to cart… The item has been added
Description

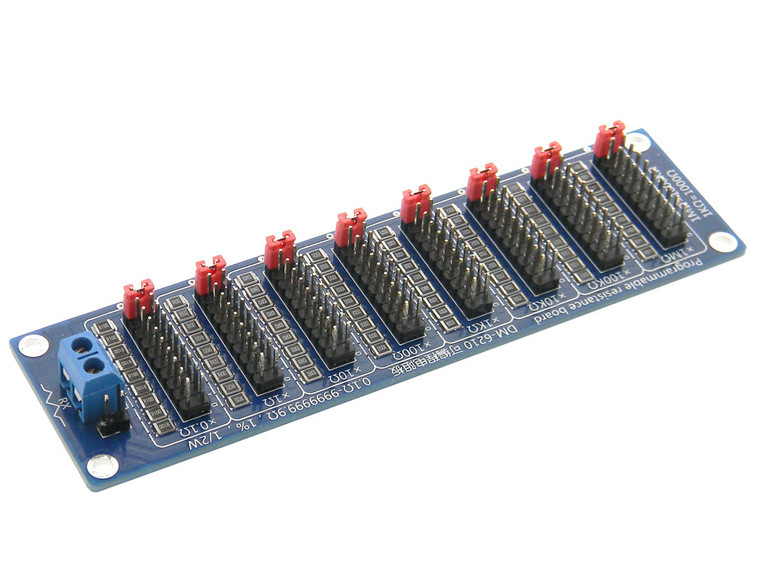

Resistor Subststution Board - 0.1 Ohm / 9,999,999.9 Ohms

Additional Notes:
* Resistor substitution board for quick set of a resistor value.
* Jumper select from 0.1 Ohm to 9,999,999.9 Ohms in 8 decades
* Resolution: 0.1 Ohm
* Power: 1/2 Watt
* Tolerance: ±1% SMD resistors.
* FR4 PC Board.
* Max. Working Voltage: 200V.
* Connection: 2 Pin, 0.1 pitch header & Terminal Strip
* Dimensions (LxWxH): 5" x 1-3/8" x 5/8"
