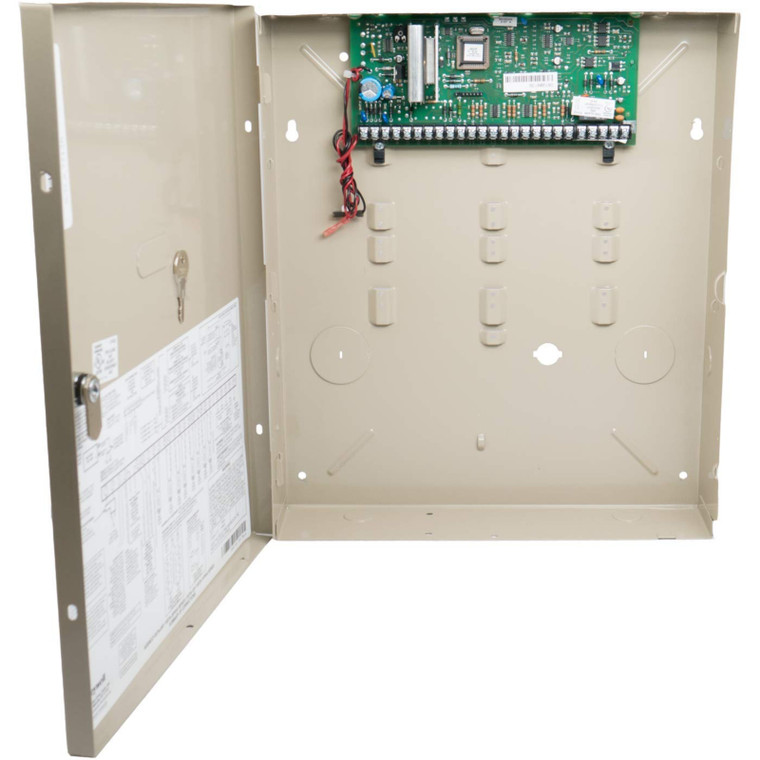

Resideo VISTA-20P Control Panel

Resideo VISTA-20P, Control Panel

Condition:
* New Surplus Stock, In OEM Packaging. As Pictured.

Additional Notes:
* IP and cellular radio alarm reporting and upload/download capability
* Z-Wave® thermostats, lights, locks, water shut-off, garage door, shades and audio control via Tuxedo Touch and VAM
* Supports four graphic touchscreen keypads
* Wireless keys can be programmed without using zones
* Eight on-board hardwired zones standard (15 when Zone Doubling feature is used) – 40 hardwire expansion zones – 40 wireless expansion zones
* Two low current on-board trigger outputs
* 100 Event Log viewable at system  keypads with time/date stamp
* Aux. power 12 Volt DC, 600mA Maximum
* Seven hour standby at 400mA aux. load  with four amp hour battery
* 16.5 Volt AC/25 VA Transformer
* Alarm Output 12 Volt DC, 2.0 Amps Max. -  For UL Installations, combined aux. and alarm output cannot exceed 700mA
* Supports Up To Four Relay Boards  (Up To 16 Relays)
* Optional X-10 Transformer/Interface (Part No. 4300) may be used to control  up to 16 X-10 receiving devices

Resideo
VISTA-20P
