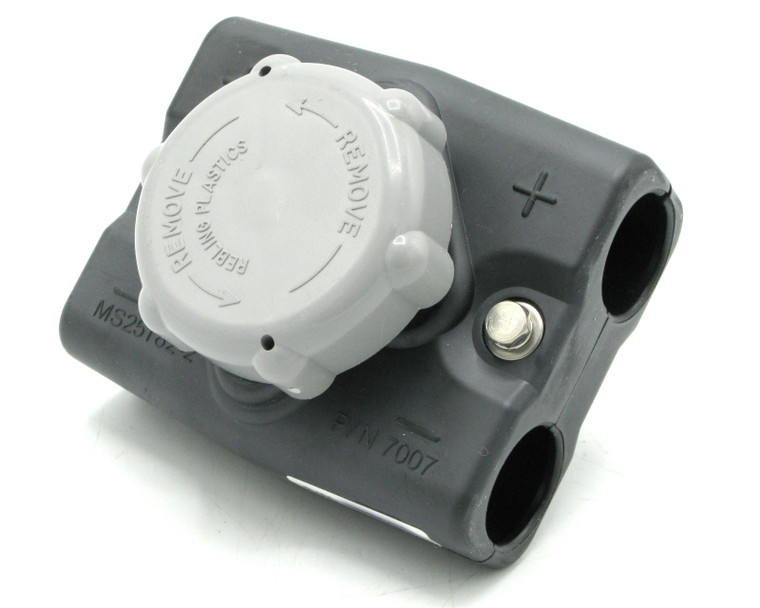

Rebling MS25182-2 Military Standard 2-Pin Battery Connector

Rebling MS25182-2 Military Standard 2-Pin Battery Connector

Condition:
* New, Surplus Stock.

Additional Notes:
* Embraer Specification:6415780
* Pilatus Specification:19.11.101
* SAFT Specification:0120-002-601
* SAFT Specification:BD6-3
* US Military Specification:MIL-P-18148
* Body Style: Battery Plug
* Overall Length: 4.040 Inches Maximum
* Overall Height: 3.700 Inches Nominal
* Overall Width: 3.400 Inches Maximum
* Environmental Protection: Chemical Resistant And Salt Water Resistant
* Cable Entrance Diameter: 0.900 Inches Nominal
* Mating End Quantity: 1
* Contact Position Arrangement Style: 2 Single Mating End
* Contact Removability: Nonremovable Single Mating End Single Contact Grouping
* Shell Type: Solid
* Connector Locking Method: Jackscrew
* Terminal Location: Back Single Mating End Single Contact Grouping
* Contact Material: Metal Single Mating End Single Contact Grouping
* Insert Material: Plastic Single Mating End
* Terminal Type: Screw W/Wire Lock Single Mating End Single Contact Grouping
* Included Contact Quantity: 2 Single Mating End Single Contact Grouping
* Included Contact Type: Round Socket Single Mating End Single Contact Grouping
* Test Data Document: 81349-Mil-P-18148 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
* Specification/Standard Data: 96906-MS25182 Government Standard

Rebling
MS25182-2
