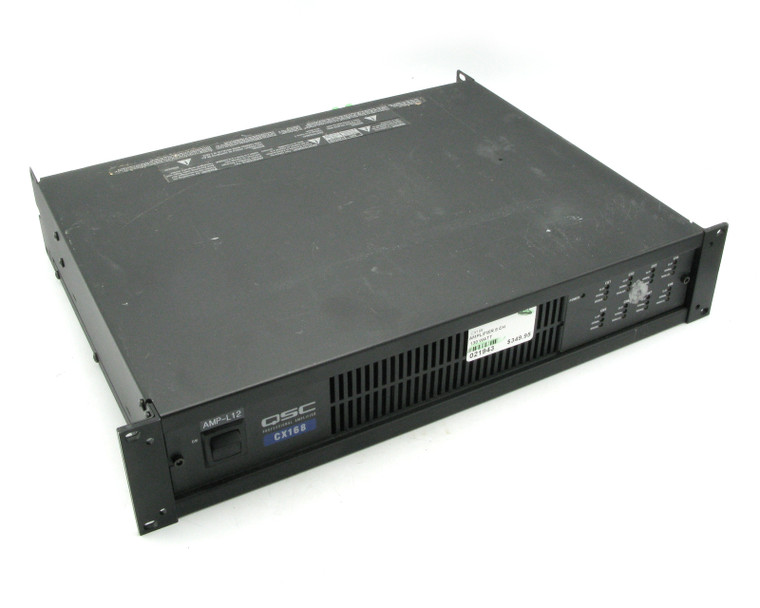

QSC Audio CX168 8 Channel Audio Amplifier, 130 Watt

QSC Audio CX168, 8 Channel Audio Amplifier, 130 Watt

Condition:
* Used, removed from service in working condition. Powers up and outputs signal. As pictured.

Additional Notes:
* 90W Per Channel @ 8 Ω, 130 Watt @ 4 Ω
* Channel pairs bridgeable for maximum flexibility
* PowerWave technology delivers tighter bass and cleaner highs
* Four HD-15 DataPort connectors (one per channel pair) for Q-SYS control/monitoring
* Power Ratings:
       • 8 Ω, 0.05% THD: 90 Watt
       • 4 Ω, 0.1% THD: 130 Watt
       • Midband Rating, 8 Ω, 0.1% THD 1 kHz: 100 Watt All Channels, 120 Watt Single Channel
       • Midband Rating, 4 Ω, 0.1% THD 1 kHz: 140 Watt All Channels, 180 Watt Single Channel
       • 16 Ω 0.1% THD 20 Hz - 20 kHz: 180 Watt
       • 8 Ω 0.1% THD 20 Hz - 20 kHz: 260 Watt
* Input Impedance: 6 kΩ Unbalanced, 12 kΩ Balanced
* Input Connectors: 3-pin Euro-style detachable terminal blocks (one per channel)
* Data Port Connector: HD-15 Connector (Ch 1+2, 3+4, 5+6, 7+8)
* Output Connector: Two 8-pin Euro-style detachable terminal blocks
* Front Controls: AC Switch, Ch 1, 2, 3, 4, 5, 6, 7 and 8 gain knobs
* Rear Controls: DIP Switches for Ch. 1 - Ch. 8, clip limiter on/off, LF filter on/off, LF filter freq select 33 or 70 Hz, inputs parallel or stereo; bridge mode
* Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic and RF protection; Stable into reactive or mismatched loads
* Load Protection: On/off muting; individual channel DC fault blocking

QSC Audio
CX168
