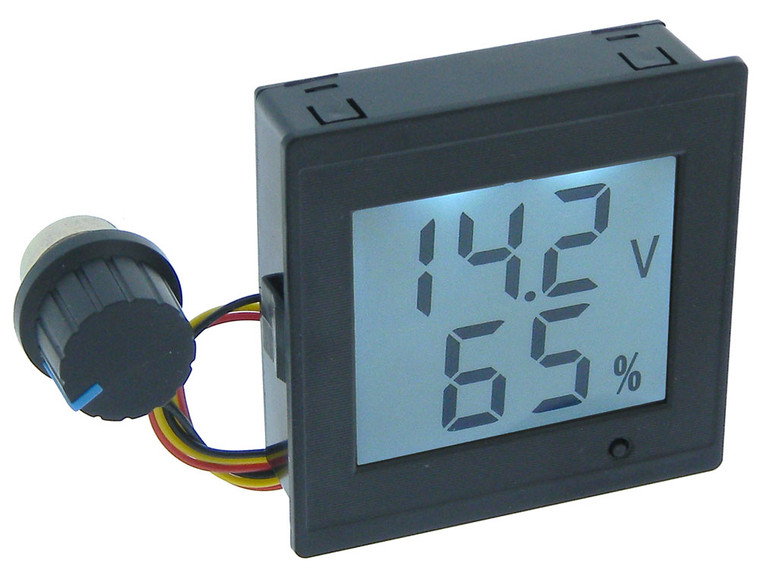

PWM DC Motor Speed Control with %, PWM, Volts, or Current
Additional Notes:
* Unidirectional PWM DC Motor speed control with LCD Display (%, Voltage or Current), external control.
* NOTE: To Reverse Motor requires an external Reversing Switch (NOT Supplied)
* Displays: % Speed & Motor Voltage or % Speed & Motor Voltage at push of a button.
* Linear output 0-100% of motor RPM
* Input Voltage: 12-36VDC
* NOTE: Should be the same as Motor
* Continuous Current: 5 Amps
* Surge Current: 8 Amps max
* PWM Frequency: 15kHz
* Voltage Measurement Range: 12-36VDC
* Current Measurement Range: 8 Amps Starting current
* Min: 0.1A
* Accuracy: 5%
* Control: 100k ohm Variable Resistor
* Display: 41mm x 48mm LCD
* Connections: Motor & Power: Terminal Strip
* Potentiometer: 6in Hard Wired
* Cutout: 63mm * 63mm
* Dimensions (WxHxD) 68mm x x68mm x 22mm (2-5/8" x 2-5/8" x 7/8")
