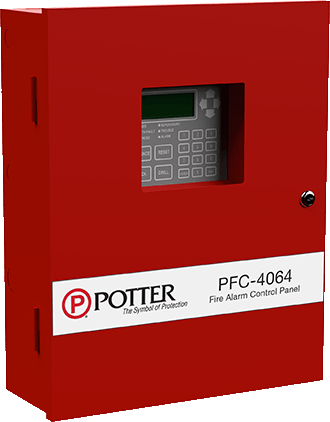

Potter PFC-4064 Conventional Fire Alarm Panel

Potter PFC-4064 Conventional Fire Alarm Panel

Condition:
* New surplus stock, in sealed OEM packaging. As pictured.

Additional Notes:
* 6 Programmable Initiating Device Circuits
* System is expandable to 192 input circuits using the IDC-6 expansion module
* 5.0 Amp Power Supply
* 4 Notification Circuit rated at 3.0 Amps
* Strobe Synchronization for Gentex, AMSECO, System Sensor and Cooper/Wheelock
* One programmable auxiliary output rated at 1.0 A
* 4 x 20 LCD display with system LEDs for clear system status
* P-Link RS-485 bus supports 31 system accessories
* Built-in Ethernet Connection with listed IP Communicator
* Ability to E-mail system status, reports and system configuration
* Service Reminder E-mails
* Dimensions: 18 1/2” H x 14 1/4 W x 4 3/4” D
* Enclosure: 18 gauge cold rolled steel with removable locked door with Lexan viewing window
* AC Mains:
       • 5.0 amp @ 120 VAC 60 Hz
       • 2.0 amp @ 240 VAC 50 Hz
* Battery:
       • 70 mA Standby
       • 235 mA Alarm
* Temperature and Humidity Range: 32° to 120° (0°C to 49°C) with a maximum humidity of 93% non-condensing.
* Standards: NFPA 70, 72

Potter
PFC-4064
0785192024880
