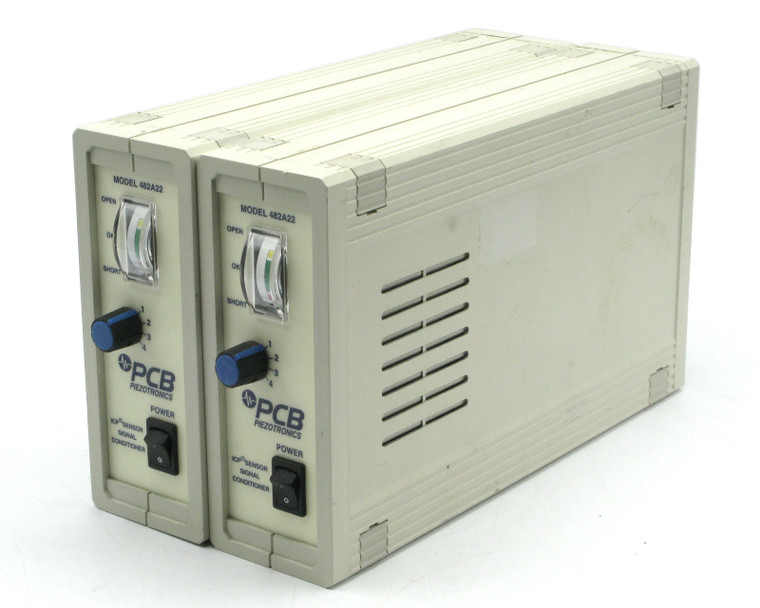

PCB Piezotronics 482A22 ICP Signal Conditioner Lot, 2pcs

PCB Piezotronics 482A22, ICP Signal Conditioner, 2 Piece Lot

Condition:
* Used, Unable To Test. Sold As-Is.

Additional Notes:
* Channels: 4
* Voltage Gain(± 1 %): 1:1
* Low Frequency Response(-5 %): <0.1 Hz
* High Frequency Response(-5 %): >1000 kHz
* Fault/Bias Monitor/Meter: 26 V FS
* Temperature Range: 32°F to 120°F
* Power Required (Standard): DC power
* Excitation Voltage (To Sensor): 25 to 27 Volt DC
* DC Offset(Maximum): <20 mV
* DC Power: +32 to 38 Volt DC
* DC Power: 0.12 Amps
* Constant Current Excitation(To Sensor): 2 to 20 mA
* Discharge Time Constant (0 to +50%): 10 Sec
* Spectral Noise(1 Hz): 1.11 µV/√Hz (-119 dB)
* Spectral Noise(10 Hz): 0.14 µV/√Hz (-138 dB)
* Spectral Noise(100 Hz): 0.07 µV/√Hz (-144 dB)
* Spectral Noise(1 kHz): 0.04 µV/√Hz (-149 dB)
* Spectral Noise(10 kHz): 0.03 µV/√Hz (-150 dB)
* Broadband Electrical Noise (1 to 10,000 Hz): 3.25 µV (-110 dB)
* Electrical Connector (Input, Sensor): BNC Jack
* Electrical Connector (Output): BNC Jack
* Electrical Connector (DC Power Input): DIN Jack
* Size: 6.3" x 2.4" x 11" (16cm x 6.1cm x 28cm)
