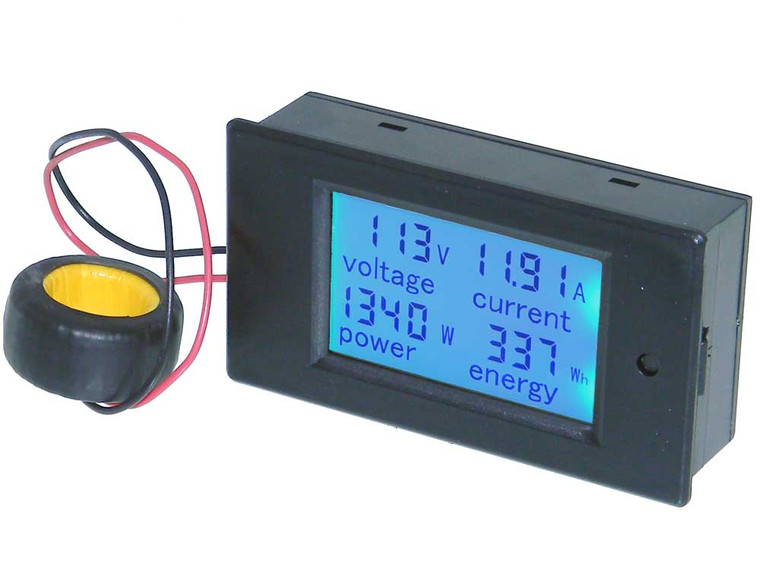

Panel Meter, Snap-in, Multi Function AC Volts, 100Amps and 22KW
$20.95
(No reviews yet)
Write a Review
Panel Meter, Snap-in, Multi Function AC Volts, 100Amps and 22KW
Panel Meter, Snap-in, Multi Function AC Volts, 100Amps and 22KW
Additional Notes:
* Blue back-lit, Snap-in LCD panel meter that measures
* AC Volts, Amps, Watts, Watt hours.
* Adjustable Overload function (over power alarm threshold: Backlight Flashes.) Ideal for submetering and monitoring.
* Terminal Strip for Connections & Back Cover.
* External Current Transformer can be mounted remotely.
* Input Voltage: 80-260VAC
* Resolution: 1V
* Input Range Amps: 0-99.99A
* Resolution: Amps: .01
* Watts: 0-22KWmax
* Resolution: <1KW=0.1W, <10KW=1W, <22KW=100W
* Energy Used: 0-9999KWh
* Resolution: <10KWH=0-9999WH, >10KWH=9999KWH
* Accuracy: +-1% +-1LSD
* Current Transformer I/D: 15mm
* Cutout: 84.6mm X 44.6mm
* W: 3-9/16"
* H: 2"
* D: 1”
