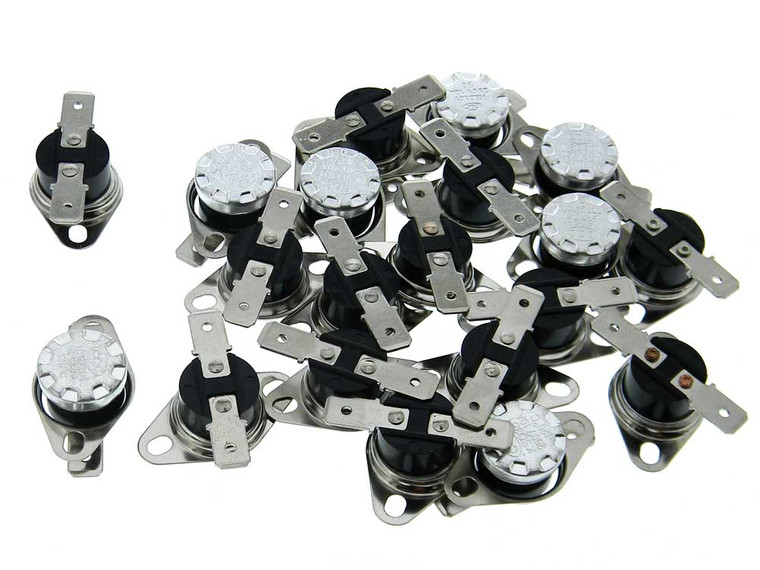

Pack of 20 - SPST-NO Bi Metallic Snap Action Thermostats

Additional Notes:
* Pack of 20pcs
* KSD301 series snap-action, 1/2in disc, bimetal thermostats with Bakelite body.
* 1 each of the Following Temperatures: 35°C, 40°C, 50°C, 55°C, 60°C, 65°C, 70°C, 75°C, 80°C, 85°C, 90°C, 95°C, 100°C, 105°C, 110°C, 115°C, 120°C, 125°C, 130°C
* Tolerance:
     • < 105°C: ±3°
     • > 106°C: ±5°
* Action: SPST-Normally Open Closes at Rated Temp.
* Reset Type: Automatic
* Rated: 10 Amps, 250VAC Resistive
* Max. Operating Temp: 205°C (extended time) /235°C (<15 min)
* Contact Resistance: < 50mO
* Hysteresis: ~ 17°C
* Connection: .250 Quick Connect
* Mounting: Floating Steel Bracket
* Overall Dimensions (LxWxH): 7/8" x 3/4" x 1/2"
