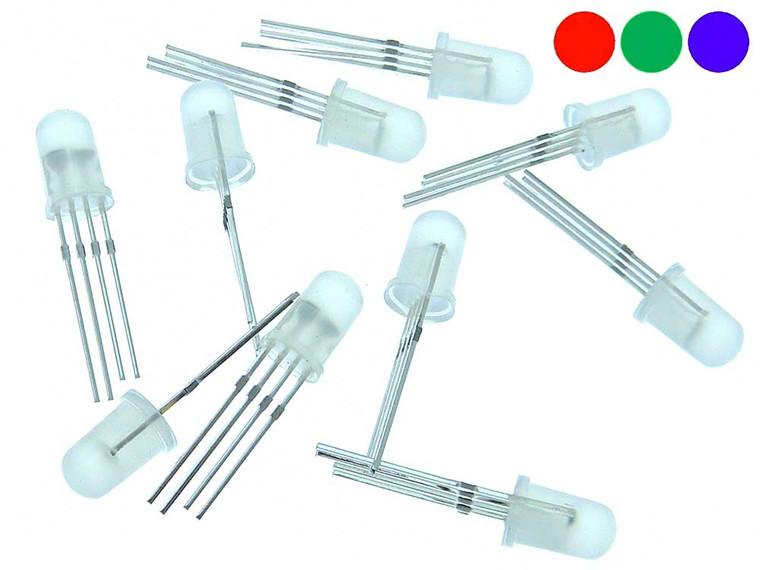

Pack of 10 - PL9823 Programmable RGB 5mm LED

MPJA
SKU:
025577
$2.95
(No reviews yet)
Current Stock:
6
Adding to cart… The item has been added

Pack of 10 - PL9823, Programmable RGB 5mm LED

Additional Notes:
* Sold in Pack of 10
* PL9823 RGB Pixel LED, that you can program the color and Intensity.
* Colors: 16 Million
* Intensity: 256 levels
* 4 Leads, Vcc, Gnd Din & Dout.
* Easy to cascade into longer strings.
* Note: that these are not simple LEDs, Must be sent serial data field .
* 24 bit field controls the Red, Green & Blue LED.
* Power: 5 Volt DC
* Current: ~100mA Peak/5mm LED
* Viewing Angle: 100-120 Degree
* Max Data String: 1024 LEDs
* Data Rate: 800KBPS
* Red LED: 625nm 600mcd
* Green LED: 520nm, 1300mcd
* Blue LED: 465nm, 450mcd
* 4leads, Vcc, Gnd Din & Dout.
