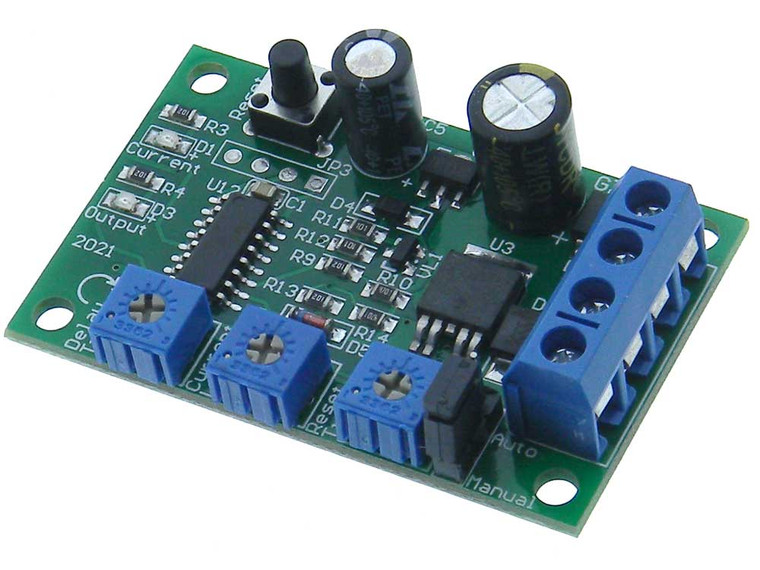

Overcurrent Protection Module 6-28VDC

Overcurrent Protection Module 6-28VDC

SKU:
025817
$9.95
(No reviews yet)
Current Stock:
4
Adding to cart… The item has been added
Description

Overcurrent Protection Module 6-28VDC

Additional Notes:
* DC Overload/Current module detects & shuts off load when the current exceeds adjustable limit.
* NOTE: NOT a Speed Control, Dimmer or Reversing Switch
* Power: 6-28VDC
* Current Adjustment Range: ~0.02~10ADC max
* Resistive: 8A Nominal
* Motor: 5A Nominal
* Overload Delay (Surge): ~0-20sec.
* Reset: Selectable Auto/Manual
* Auto: ~0-600sec.
* Manual: Push Button on Board
* Connections: Terminal Strips
* L: 50mm (1-15/16") W: 32mm (1-1/4") H: 16mm (9/16")
