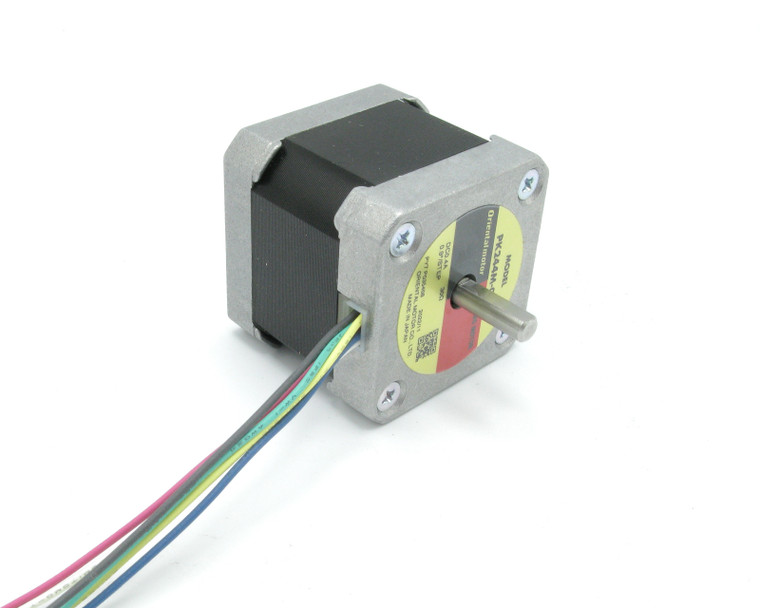

Orientalmotor VEXTA PK244M-03BA, 2-Phase Stepping Motor

Orientalmotor VEXTA PK244M-03BA, 2-Phase Stepping Motor

Condition:
* New, Surplus Stock. Never Put Into Service.

Additional Notes:
* Product Line: VEXTA
* Motor Type: 2-Phase
* Shaft/Gear Type: Round Shaft (No Gear Head)
* Holdng Torque: 44 oz-in
* Type: High-Resolution
* Connection Type: Bipolar (Series), Unipolar
* Lead Wires: 6
* Current Per Phase (A/phase): 0.28 [Bipolar (Series)], 0.4 [Unipolar]
* Encoder: Not Equipped
* Shaft: Double
* Voltage (VDC): 17 [Bipolar (Series)], 12 [Unipolar]
* Resistance (Ω/phase): 60 [Bipolar (Series)], 30 [Unipolar]
* Inductance (mH/phase): 152 [Bipolar (Series)], 38 [Unipolar]
* Step Angle: 0.9 °
* Rotor Inertia (oz-in2): 0.3 oz-in2
* RoHS Compliant: Yes
* Insulation Resistance: 100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.
* Dielectric Strength: Sufficient to withstand 0.5 kVAC at 50 Hz or 60 Hz applied between the windings and the case * for 1 minute under normal ambient temperature and humidity.
* Temperature Rise: Temperature rise of the windings is 144ºF (80ºC) or less measured by the change resistance method. (at rated voltage, at standstill, 2 phases energized)
* Insulation Class: Class B [266ºF (130ºC)]
* Ambient Temperature Range: 14 ~ 122ºF (-10 ~ 50ºC) (non-freezing)
* Ambient Humidity: 85% or less (Non-condensing)
* Shaft Runout: 0.05mm (0.002in) T.I.R.
* Concentricity: 0.075mm (0.003in) T.I.R.
* Perpendicularity: 0.075mm (0.003in) T.I.R.
* Radial Play: 0.025mm (0.001in) maximum of 5 N (1.12lb)
* Axial Play: 0.075mm (0.003in) maximum of 10 N (2.2lb)
* Step Accuracy: ±3 arc minutes (±0.05º)

Orientalmotor
PK244M-03BA
