Optex VX-402REC Wired Multi-Stabilized Outdoor PIR w/Voice Recording & Warning

Optex VX-402REC Wired Multi-Stabilized Outdoor PIR w/Voice Recording & Warning

SKU:
017359
Availability:
$99.95
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description

Optex VX-402REC Wired Multi-Stabilized Outdoor PIR Detector
w/Voice Recording & Warning Functions

Condition:

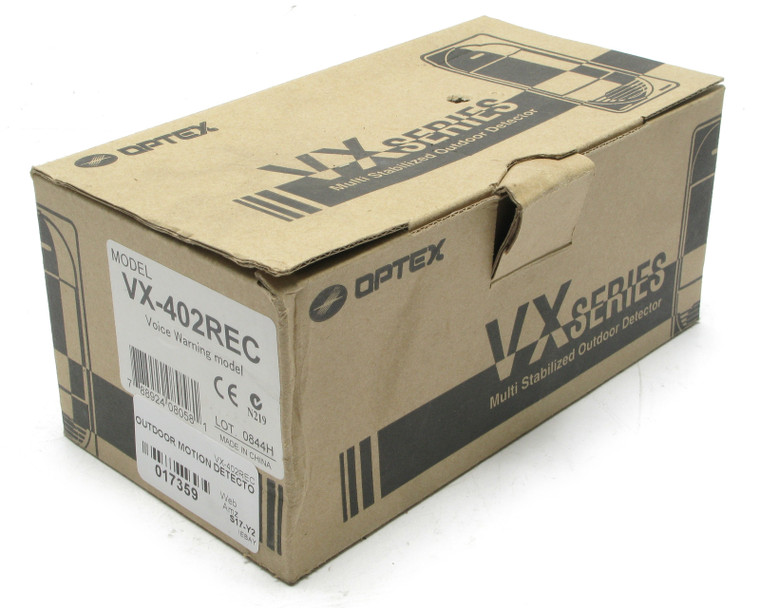

* New old stock, in OEM packaging. As pictured.

Additional Notes:
* Detection Method: Passive Infrared
* Coverage: 40' (12 m), 90° wide
* Detection Range: 14 zones
* Mounting Height: 2.7 to 4.0' (0.8 to 1.2 m)
* Sensitivity: 3.6°F (2.0°C) at 0.6 m/s
* Speed: Detectable Speed: 1.0 to 5.0 feet/s (0.3 to 1.5 m/s)
* Power Supply: 9.5 to 18 VDC
* Current Consumption:
     • Normal 25 mA maximum, 180 mA (N.C.)
     • Normal 12 mA maximum, 200 mA (N.O.)
* Alarm Period: 2 ±1 sec
* Alarm Output: Selectable N.C. / N.O.: 28 VDC, 0.2 A maximum
* Tamper Detection: N.C. Opens when cover is removed
* Pulse Dialing: 20 ±5 sec, 2 or 4
* Warm-Up Period: Approximately 30 sec (LED blinks)
* Volume: 75 dB
* LED Indicator: LED blinks during warm-up period, alarm condition, and recording condition
* Weatherproof: IP54
* Mounting: Wall, pole, conduit, and electrical box
* Operating Temperature: -4 to 122°F (-20 to 50°C)
* Operating Humidity: 95% maximum
* Overall Dimensions: 7.80 x 3.15 x 3.23" (19.81 x 8.00 x 8.20 cm)
