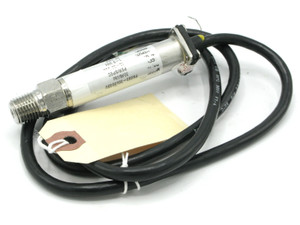

Omega Thin Film Pressure Transducer Gage, 15vac

Omega Thin Film Pressure Transducer Gage, 15vac

omega
SKU:
020509
$49.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Omega Thin Film Pressure Transducer Gage, 15 Volt AC

Condition:
* Used, Untested. Sold As-Is.

Additional Notes:
* Excitation: 10 to 30 Volt DC Unregulated
* Output: 1 to 5 Volt DC (3 Wire)
* Supply Current: <3.0 mA
* Insulation Resistance: 100 MΩ @ 50 Volt
* Accuracy: ±0.4% BFSL (Includes non-linearity, hysteresis and non-repeatability errors)
* ±1.0% Terminal Point Method Includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors
* Hysteresis: ±0.2% FS
* Repeatability: ±0.05% FS
* Stability: ±1.0%/year
* Durability: 100 Million Cycles
* Operating Temperature: -48°C to 90°C (-55°F to 195°F)
* Compensated Temperature: -29°C to 82°C (-20°F to 180°F)
* Thermal Zero Effect: ±0.07% FS/°C
* Thermal Span Effect: ±0.07% FS/°C
* Proof Pressure:
       • 15 to 2000 PSI = 200% FS
       • 3000 to 5000 PSI = 150% FS
       • 7500 to 20,000 PSI = 120% FS
* Burst Pressure:
       • 15 to 2000 PSI = 800% FS
       • 3000 to 5000 PSI = 500% FS
       • 7500 to 20,000 PSI = 500% FS
* Gages: Thin-Film Polysilicone
* Diaphragm: 17-4 PH Stainless Steel
* Case: 300 Series Stainless Steel
* Pressure Connection:
       • 15 to 10,000 PSI = ¼ NPT
       • 15,000 and 20,000 PSI = Female Aminco Fitting
* Electrical Connection: 0.9 Meter (36") Braided-Shield PVC Cable or Connector
* Response Time: 5 ms
* Construction: Sealed Units, Except PX603 ≤500 PSI is Vented to Room

OMEGA
PX603-500G5V
