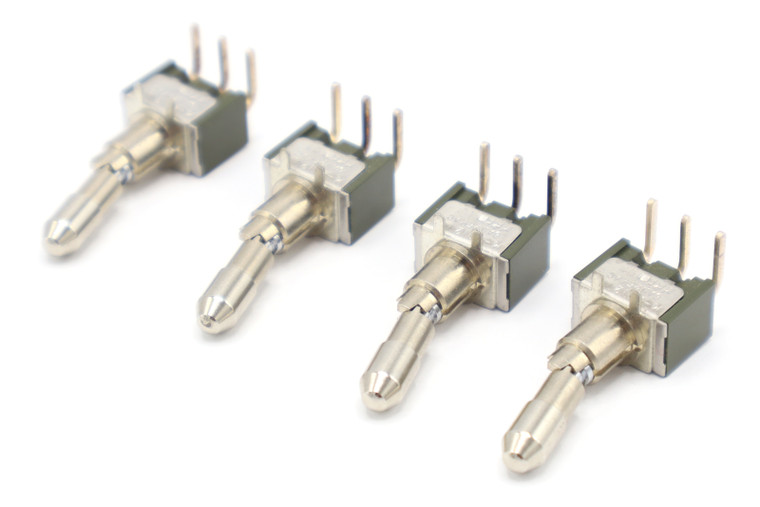

NKK Switches M-2012L, Mini Toggle Switch SPDT, 4 Piece Lot
Condition:
* New Old Stock, No OEM Packaging. As Pictured.
Additional Notes:
* Actuator Style: Locking Lever
* Pole Throw Configuration: SPDT
* Switch Configuration: ON / ON
* Bushing Type: Threaded
* Maximum Current Rating (A): 6 Amp @ 125 Volt AC
* Dielectric Strength: 1000 Volt AC
* Actuator Length (mm): 16.5mm
* Number of Rows: 1
* Mounting: Panel Mount with Threads
* Termination Style: Solder Lug
* Number of Terminals: 3
* Terminal Length (mm): 4.5mm
* Terminal Pitch (mm): 4.7mm
* Operating Temperature: -30°C To +85°C
* Thread Size: 1/4-40
* Body Length (mm): 13mm
* Bushing Length (mm): 9.7mm
* Body Depth (mm): 7.9mm
NKK Switches
M-2012L
