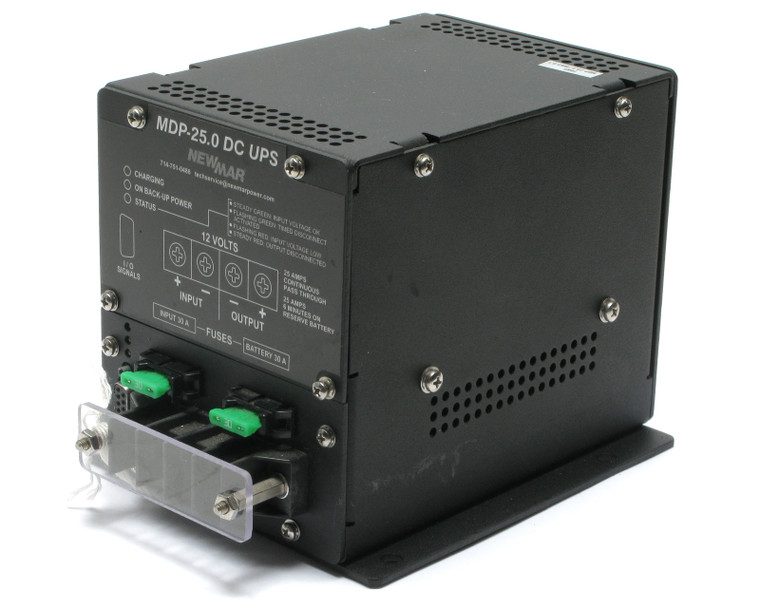

Newmar MDP-25 Mobile DC UPS Backup Power System

Newmar MDP-25, Mobile DC UPS Backup Power System

Condition:
* New Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Input Voltage: 12-15.5 V olt DC, 11.5 Minimum Input Required For Start Up,
* Maximum Input Current: 28.5 Amps (25 Amps max. Load + 3.5 Amps Charger)
* Output Voltage: 12 Volt  DC Filtered, 25 Amps Max.
* Back-Up Power: 12.0 Volt DC Nominal:
     • 5 Amps for 60 Minutes
     • 10 Amps for Twenty Minutes
     • 25 Amps for Seven Minutes
* Battery: Sealed Lead Acid, Rechargeable 8.0 AH
* Internal Charger: 2 Amps Max., 3 Stage, Temperature Compensated
* Filtering: Audio through 200 MHz
* Voltage Spike Protection: Transient Energy Capability; 100 Joules, 4,000 Amps Max
* Operating Temperature: 0-50° C
* Dimensions (HxWxD): 5.75” x 6.0” x 8.5” (14.6cm x 15.24cm x 21.59 cm)

Newmar
MDP-25
