Multi Function Time Relay SPST-NO

Multi Function Time Relay SPST-NO

MPJA
SKU:
026137
$12.95
(No reviews yet)
Current Stock:
45
Adding to cart… The item has been added
Description

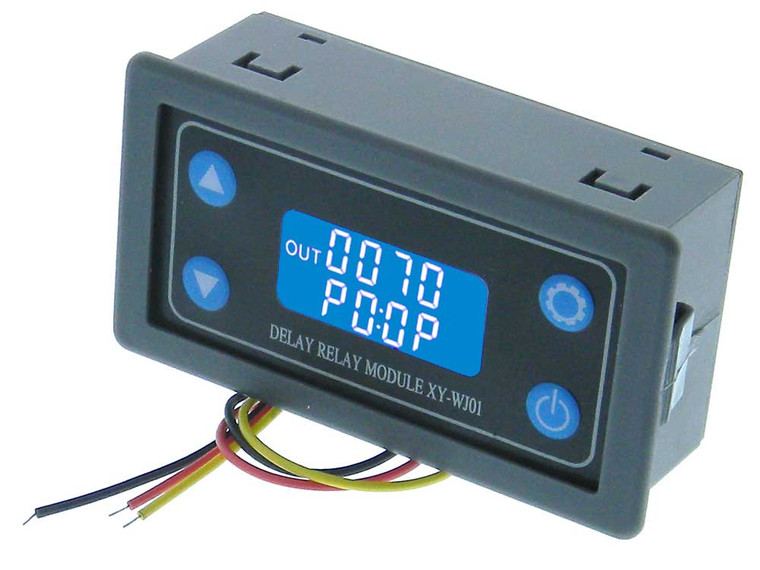

Multi Function Time Relay SPST-N.O.

Condition:
* New Surplus Stock, In OEM Packaging. As Pictured.

Additional Notes:
* Multi function Timer with multiple timing modes Liquid Crystal Display.
* Delay OFF, Delay ON with Lock out, retrigger, Stop on retrigger
* Recycle (Loop)
* OFF, ON & # of Loops Independently Programmable.
* Supports High & Low Level Triggering, Optocoupler Isolation
* Reverse Polarity Protected
* Sleep mode. After enabling, if there is no operation for ~5 minutes, Backlight turns off (Any button wakes up)
* All setting are automatically saved at power-off.
* One-button pause function
* Power: 6-30 Volt DC
* Quiescent Current: ~15 mA
* Working Current: ~50 mA
* Timing Range: 0.01 Sec~9999 Min
* Trigger Signal: High-level: 3.0 Volt~24 Volt, Low-Level: 0.0 Volt~0.2 Volt
* Relay: SPST-NO Isolated Contacts
* Contacts: 10 Amp/14 Volt DC, or 5 Amp/110 Volt AC
* Operating Temperature: -40°C~85°C
* Connections: Terminal Strip For Power & Relay
* Trigger: Header on Back With 8" Pigtail
* W: 3-1/8" x H: 1-7/16" x D: 1"
