Panel Mount Mini Frequency/RPM Display

Panel Mount Mini Frequency/RPM Display

MPJA
SKU:
025548
$10.95
(No reviews yet)
Current Stock:
27
Adding to cart… The item has been added
Description

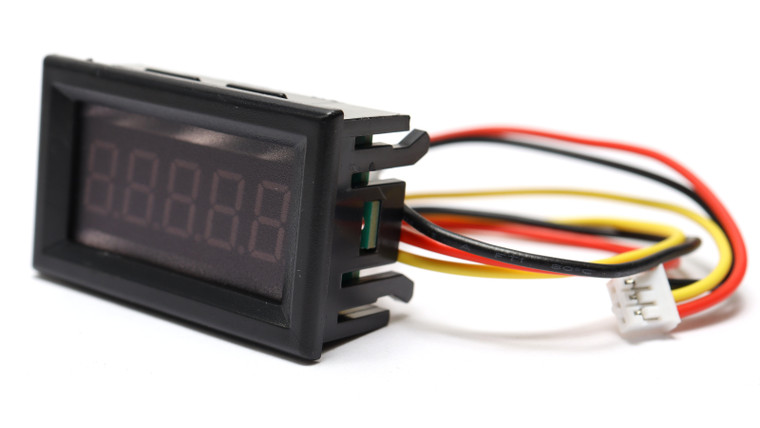

Panel Mount Mini Frequency/RPM Display

Additional Notes:
* Power: 3.5-5 Volt DC @ ~30 mA
* Mode: Selectable Frequency or RPM
* Display: 5 Digit LED
* Character Height: 0.36"
* Refresh Rate: Signal Frequency
* >3HZ: 3 Times/Second:
* <3HZ: Approximately Equal To Signal Frequency.
* Overflow Display: "- - - --"
* Accuracy: 0.1%±1Digit or 0.01‰ at 25°C.
* Frequency Range: 0.15 HZ-100 KHZ in 2 Ranges (Stored) (1-99999 or 0.0001-9.9999)
* RPM Range: 9 RPM - 999.99K RPM
* Input Range: 3-30 Volt
* Input Resistance: 100K Ohm
* Input Signal Type: Pulse, Dry Contact
* Operating Temp: - 10°C-+70°C
* Humidity 25-85% RH (No Condensation)
* Connections: 9" NON Removable Pigtail
* Cutout: 45mm x 26mm
* Dimensions (WxHxD): 48mm x 29mm x 18.5mm
