Mini Panel Meter Blue LED Display 0 to 99.9 Volts & 10 Amps DC
UNK
$9.95
(No reviews yet)
Write a Review
UNK
Mini Panel Meter Blue LED Display 0 to 99.9 Volts & 10 Amps DC
Mini Panel Meter Blue LED Display 0 to 99.9 Volts & 10 Amps DC
Additional Notes:

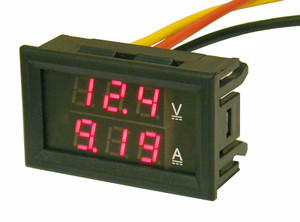

* Mini snap-in LED panel meter contains both a 3-digit Digital DC Volt Meter and a 3-digit Amp. meter.
* Operating Voltage: 4.5 to 28VDC
* Measured Voltage: 0.00 to 99.9V
* Separate Meter Power required if Measured Voltage is <4.5 or > 28VDC
* Operating Current: <30mA
* Measured Current: 0.00 to 9.99A
* Refresh Rate: 300ms
* Accuracy: 1% (±1 digit)
* Operating Temperature: -10 to 65°C
* Operating Humidity: 10 to 80% (non-condensing)
* Cutout: 45mm X 27mm
* Connections: 5" Leads
* Ammeter Connects in the return side of Load
* Cutout: 46x 27mm
* W: 1-7/8" H: 1-1/8" D: 1-1/2"(inc. Con.)
