Microsemi SmartFusion2 Starter Kit

Microsemi SmartFusion2 Starter Kit

Microsemi
SKU:
020250
$149.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

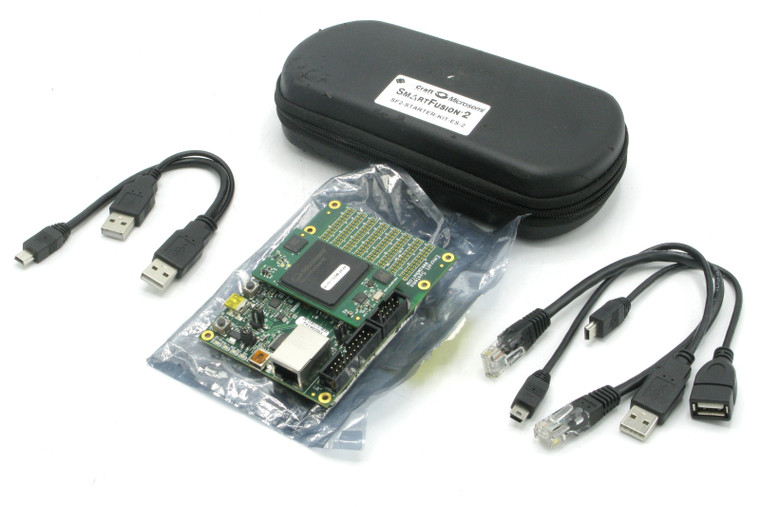

Microsemi SmartFusion2 Starter Kit

Condition:
* New, Surplus Stock.

Additional Notes:
* SmartFusion2 SoC FPGA in the FG896 package (M2S050T-FG896ES)
* JTAG interface, for programming of the SmartFusion2 device
* 10/100 Ethernet interface and RJ-45 connector
* USB OTG interface and mini-USB connector
* USB Based Wi-Fi Module
* 64MB LPDDR, 16MB SPI Flash
* User push-button connected to GPIO on the SOM
* Two user-controlled LEDs connected to GPIO on the SOM
* Breadboard area available for GPIO or FPGA I/O connection
* Power good LED indicating presence of the +3.3 V SOM power
* Reset push button, Reset-out LED
* On-Module Clocks
* Watchdog Timer (WDT)
* Serial console interface at UART CMOS levels
* Low power mode with fast wake-up times
* Depending on the design, can provide necessary power supply voltages (+5 V, +3.3 V, +1.5 V for power-optimized SOM operation) from external sources through dedicated pads on the breadboard

Microsemi
SF2-STARTER-KIT-ES-2
