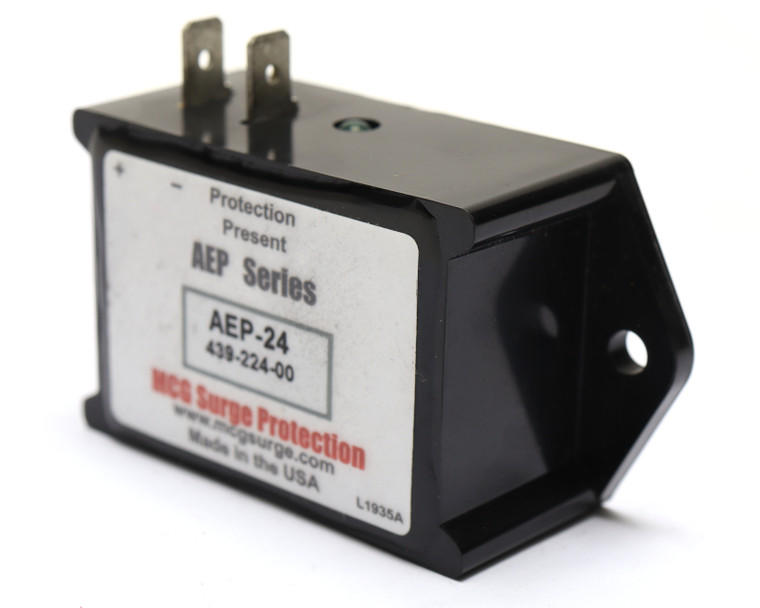

MCG Surge Protection AEP-24 24VDC Surge Protector

MCG Surge Protection AEP-24 Surge Protector

Condition:
* New surplus stock, no OEM packaging. As pictured.

Additional Notes:
* Rated Voltage: 24VDC (Max.36VDC)
* Headroom: 28% (28V nom. charging voltage)
* Peak Power Dissipation:
       • 8800 Watts (100μs/150ms waveform)
       • 200,000 Watts (8/20μs waveform)
* Connection: Positive and negative 24VDC via two 0.25" quick connects, Male
* Protection Type: Unidirectional
* Wiring: Use 14AWG minimum wire size to connect protector.
* Input Fusing: 15A (fused internally)
* Local Status Indicator: Green LED
* Dimensions: 2"L x 1.5"W x 1" D (50.8mm x 38.1mm x 25.4mm)
* Mounting: Two mounting holes, 2.5" Centers/Hole Diameter 0.187" for # 8 screws
* Enclosure: ABS Plastic, epoxy encapsulated.

MCG Surge Protection
AEP-24
