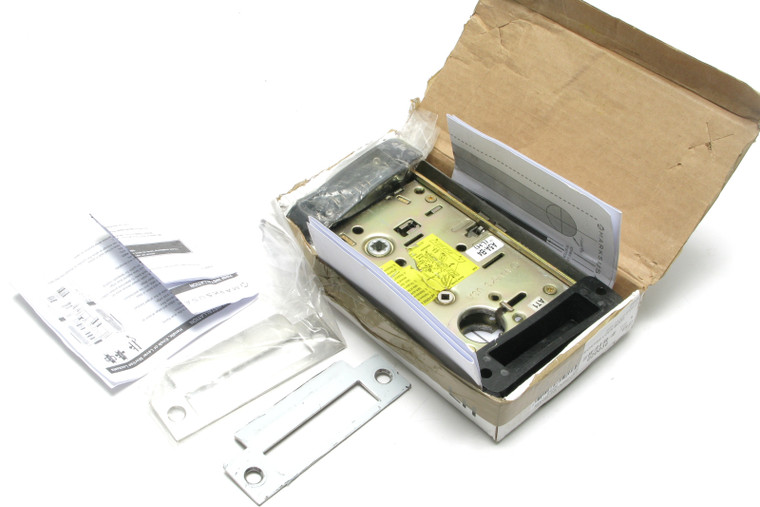

Marks USA Mortise Lockset Mechanism W/ Deadbolt, Nova 5A/32D-B4S6
Condition:
* New Surplus.
Additional Notes:
* Lock Function: ANSI F08, F10 Entrance
* Description: Keyed Single Cylinder, With Deadbolt
* Lock Front: Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick stainless steel, cover plate 1/16” thick
* Deadbolt: Stainless steel with hardened roll pins, 1” throw
* Latch: Solid stainless steel with antifriction latch lever, 3/4” throw
* Auxiliary Deadlatch: 1/2” throw
* Handing: Right Handed - RH
* Hubs Steel, 9/32’’ on diamond, 5/16” on square with security separator, independent exterior and interior lever support springs
* Lever Support Springs: Lever support springs with 5/16” Hubs
* Hub Follower: (to lock hub) steel 1/8” thick
* Hub Stop: (to limit lever travel) steel 1/8” thick.
* Case: Stamped steel 3/32” thick, zinc dichromate finish.
* Certifications ANSI/BHMA Meets or exceeds Series Grade 1 requirements, UL Listed 3-hour fire rating, ADA Meet Requirements of The Americans with Disabilities Act
Marks
5A/32D-B4S6
