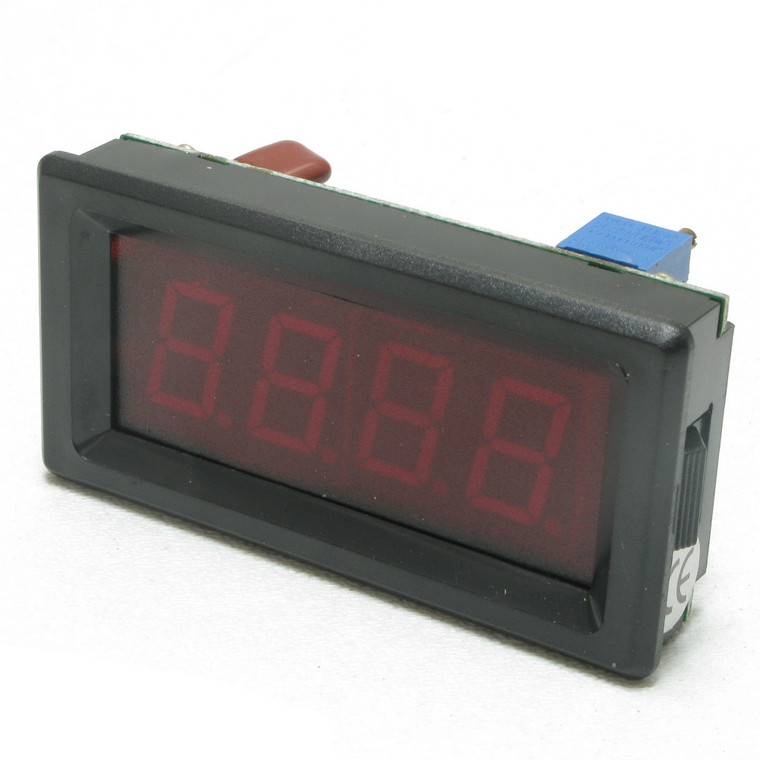

LED Digital Panel Meter, 3-1/2 Digit, Red Display

LED Digital Panel Meter, 3-1/2 Digit, Red Display

Bocatech, Inc.
SKU:
011433
$7.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 - 49 and get 15% off
  • Buy 50 - 99 and get 20% off
  • Buy 100 or above and get 25% off
(No reviews yet)
Width:
2.25 (in)
Height:
1.50 (in)
Depth:
3.25 (in)
Current Stock:
184
Adding to cart… The item has been added
Description

LED Digital DC Voltage Meter, 3-1/2 Digit, Red Display

Features:
200 mV DC Full Scale Input Sensitivity
Display Color: Red
Decimal Point Selectable
0.56" Figure Height
Automatic Polarity Indication
High Input Impedance >100 Meg Ohm
Easy Bezel Mounting
Meter Size: 72mm x 36mm x ~ 25.4mm Depth

Specifications:
Maximum Input: 199.9 mV DC
Maximum Display: 1999 Counts (3-1/2 Digits) with Automatic Polarity Indication
Indication Method: LED Display
Measuring Method: Dual-Slope Integration A-D ConverterSystem
Reading Time Rate: 2-3 Readings Per Second
Input Impedance: > 100 Meg Ohm
Decimal Point: Selectable with Wire Jumper
Supply Voltage: 7-11 Volt DC

Operation:
Input Range: 200 mV, 20 Volt, 200 Volt, 500 Volt DC
All Need Voltage Dividers and Decimal Point Wire Jumpers (NOT Included)
See Included Instruction Sheet
