LCD 4-Wire Resistive Touch Screen

SKU:
000730
$8.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 - 49 and get 12% off
  • Buy 50 or above and get 15% off
(No reviews yet)
Current Stock:
443

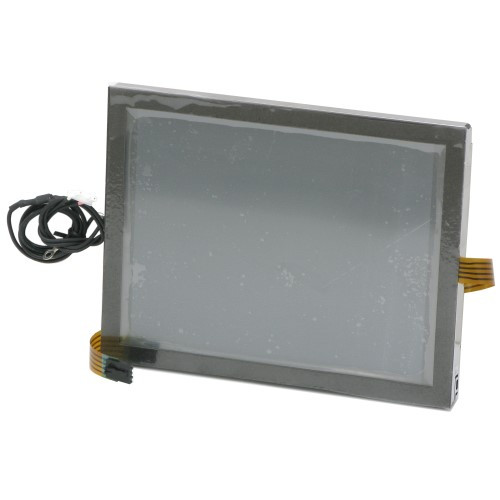

LCD 4-Wire Resistive Touch Screen

DawarTouch Resistive Touch Screens are a cost-effective, durable and versatile solution for many applications, from medical devices to personal consumer devices to industrial uses. In general, Resistive Screens consist of a flexible top layer (PET) and a bottom layer (glass or PET) separated by tiny spacer dots. The inside surface of each layer is finished with a transparent conductive coating (ITO). The pressure of touch creates contact between the top and bottom circuit layers. The touch screen's controller interprets the electronic response between the two layers to determine touch coordinates, and communicates this information to the host computer.

8" Screen Size, TFT, 640 x 480
Construction FG - Film on Glass
Power Input: 5 Volt DC @ 35mA Max
Overall Dimensions: 7-1/4" (W) x 5-9/16" (H) x 11/16" (D)
Viewing Area: 6-5/16" x 4-11/16"
4-Conductor Ribbon Wire with Connector Length. 12"
Power Cable Length with Connector. 6-3/4"
Ground Wire Length with terminal lug. 22"

Dawar Technologies
DawarTouch
DT104-1000
