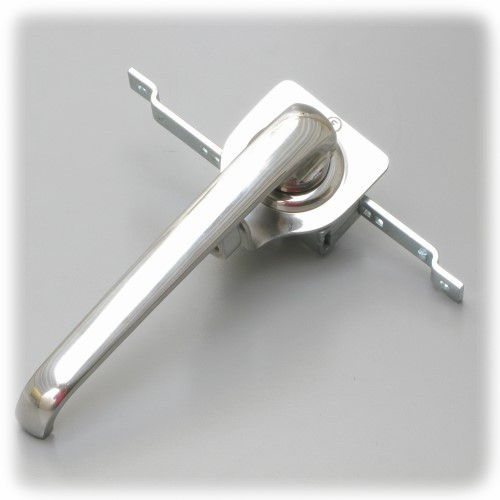

L Handle Latch with Two-Point Locking System

Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 - 49 and get 12% off
  • Buy 50 - 99 and get 15% off
  • Buy 100 or above and get 20% off
(No reviews yet)
Current Stock:
L Handle Latch with Two-Point Locking System

Handle Material: Stainless Steel
Drive Bar Material: Steel
Cam Material: Cast Aluminum
Handle Length: 6-3/4"
Handle Width: 13/16"
Handle Rotation: 180 Degree
Maximum Mounting Plate Dimensions: 2-1/4" x 2-5/16"
Mounting Plate has 3 x 1/4-20 x 1/2" Length Studs (No Nuts)
Handle Mounting Studs: 2 on top have 1-1/2" centers, 1 on bottom has 2" center from top studs.
Shaft: 3/8-16 x 1-1/2" Length (With Nut)
Cam Body Dimensions: 2-1/8" (L) x 1-1/16" (W) x 7/8" (D)
Depending on how you mount the cam body, the handle can open CW or CCW
Drive bars are 6-1/2" end to end when handle is closed
Drive bars are 4-1/16" end to end when handle is open
Each drive bar has a 3/16" hole used to attach to a two-point locking system
Drive Bars are 9/16" wide x 1/8" thick
Handle and mounting plate have 1/2" holes that when aligned can be secured with a padlock.
Applications: electrical cabinets, telecommunication, industry enclosures, jack box, etc.
