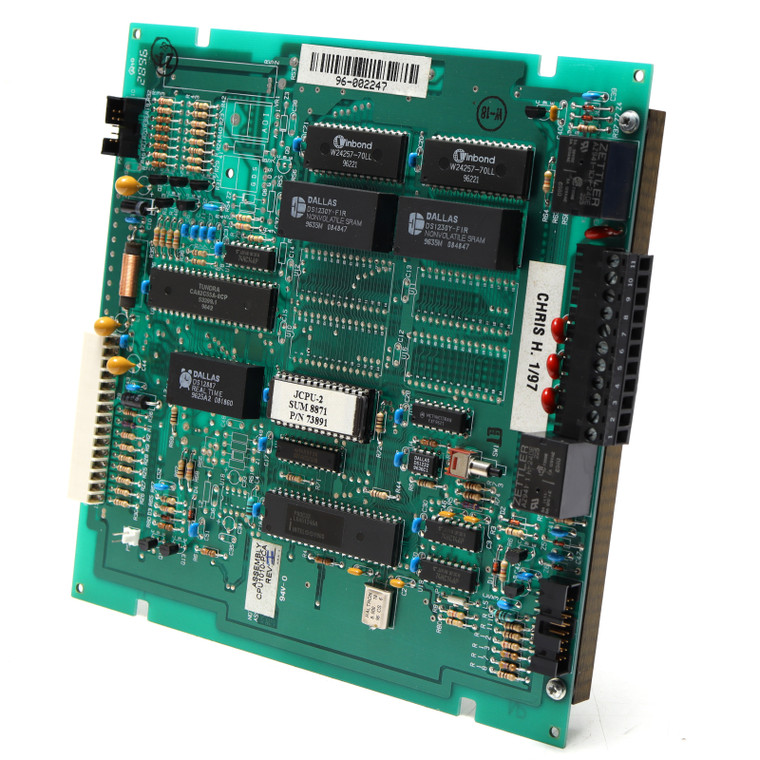

Johnson Controls JCPU2-3030D Fire Alarm CPU

Johnson Controls JCPU2-3030D, Fire Alarm CPU

Condition:
* Used, Removed From Service In Working Condition.
* Sold As-Is. As pictured.

Additional Notes:
* Listed to UL Standard 864, 9th Edition.
* One to ten isolated intelligent Signaling Line Circuits (SLC) Style 4, 6 or 7.
* Up to 159 detectors (any mix of ion, photo, laser photo, thermal, or multi-sensor) and 159 modules (N.O. manual stations, two-wire smoke, notification, or relay) per SLC. 318 devices per loop/3180 per FACP or network node.
* Large 640-character LCD backlit display (16 lines x 40 characters) or display-less (a node on a network).
* Network option – supports IFC-640, IFC2-640, IFC-320, IFC3030, IFC2-3030, IFC-200, IFC-400, IFC-1010, IFC-2020, IFW Intelligent Fire Workstation, JNCA or JNCA-2 Network Annunciators.
* Built-in Alarm, Trouble, Security, and Supervisory relays.
* VeriFire® Tools online/offline program option.
* Application code is saved in Flash memory, eliminating the need to change EPROMs.
* Built-in Degraded Mode option. In the event of a CPU failure, the system is capable of general alarm if a fire condition is present.
* Weekly Occupancy Schedules allow changing sensitivity by time of day and day of week.
* Optional universal 2040-point DACT.
* EIA-485 annunciators, including custom graphics.
* History file with 4000-event capacity in nonvolatile memory, plus separate 1000-event alarm only file.
* Advanced history filters allow sorting by event, time, date, or address.
* Alarm Verification selection per point, with tally.
* Autoprogramming and Walk Test reports.
* Positive Alarm Sequence (PAS) Presignal.
* Silence Inhibit and Auto Silence timer options.
* Field-programmable on panel or on PC, with VeriFire Tools program, also check, compare.
* Non-alarm points for lower priority functions.
* Remote ACK/Signal Silence/System Reset/Drill via monitor modules.
* Powerful Boolean logic equations — 1000!
* Supports SCS Series smoke control system in both HVAC or FSCS modes.
* EIA-232 printer port.
* EIA-485 annunciator port.

Johnson Controls
JCPU2-3030D
