Infineon Technologies IRLML2502TRPBF N-Channel Mofset, 20V

Infineon Technologies IRLML2502TRPBF N-Channel Mofset, 20V

SKU:
027243
$49.95
(No reviews yet)
Current Stock:
6
Adding to cart… The item has been added
Description

Infineon Technologies IRLML2502TRPBF N-Channel Mofset, 20V

Condition:

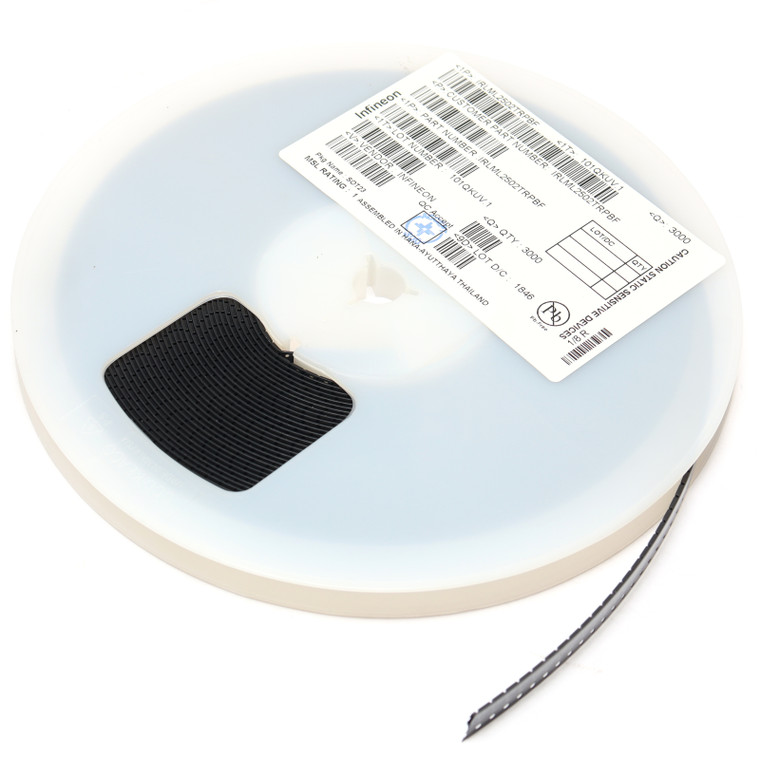

* New surplus stock, no OEM packaging. As pictured.

Additional Notes:
* Vgs(th) (Max) @ Id: 1.2V @ 250µA
* Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 5 V
* Vgs (Max): ±12V
* Input Capacitance (Ciss) (Max) @ Vds: 740 pF @ 15 V
* Power Dissipation (Max): 1.25W (Ta)
* FET Type: N-Channel
* Operating Temperature: -55°C ~ 150°C (TJ)
* Technology: MOSFET (Metal Oxide)
* Mounting Type: Surface Mount
* Drain to Source Voltage (Vdss): 20 V
* Current - Continuous Drain (Id) @ 25°C: 4.2A (Ta)
* Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
* Rds On (Max) @ Id, Vgs: 45mOhm @ 4.2A, 4.5V
* Base Product Number: IRLML2502

Infineon Technologies
IRLML2502TRPBF
