IFS MC100FX-TX-POE Fast Ethernet w/ PoE to Multi-Mode Fiber

IFS MC100FX-TX-POE Fast Ethernet w/ PoE to Multi-Mode Fiber

ifs
SKU:
026463
$49.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

IFS MC100FX-TX-POE, Fast Ethernet w/ PoE To Multi-Mode Fiber

Condition:

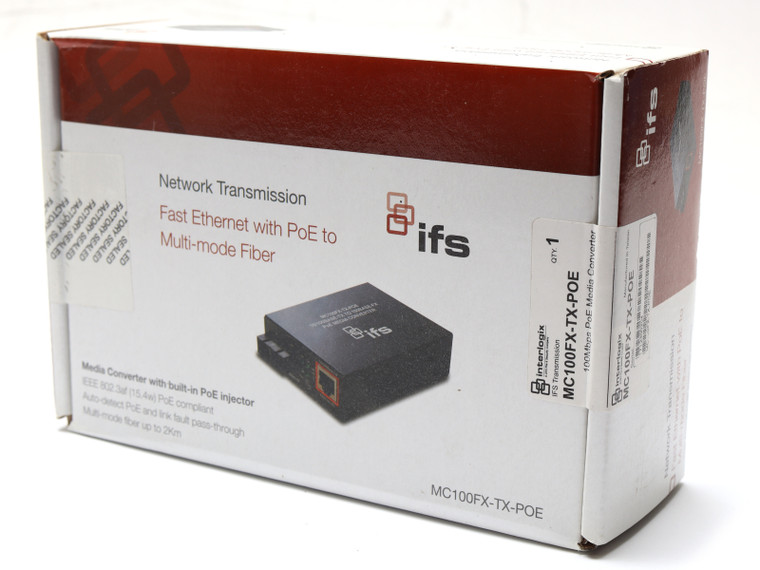

* New Surplus Stock, In OEM Packaging. As Pictured.

Additional Notes:
* Slim-type metal case
* Operating temperature from 0°C ~ +50°C
* Stand-alone and wall-mount design
* 48 Volt/0.4 Amp DC Power Supply
* Complies with IEEE 802.3, IEEE 802.3u • 10/100Base-TX, 100Base-FX, IEEE 802.3af Power Over Ethernet standard
* Auto-negotiation for 10/100Base-TX half-duplex or 10/100Base-fullduplex
* Compact size allows for easy installation
* 100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm) on MC100FX-TX-PoE
* LED indicators offer simple network diagnosis
* IEEE 802.3x full-duplex flow control, back pressure in half-duplex eliminate packet loss
* Supports maximum frame size to 1600bytes
* Supports auto MDI/MDI-X function
* Store-and-Forward mechanism
* Auto Loop Back Test function
* Side DIP Switch: LFP (Link Fault Pass-Through) Mode Selection
* Number of Ports: 1
* Port speed: Fast
* Port type: 10/100
* Fiber Port: 1
* Fiber Port Type: Multimode
* Fiber Port Speed: 100Base FX
* Fiber Distance: 2 km
* Fiber Connector: SC
* Wavelength: 1300 nm

IFS
MC100FX-TX-POE
