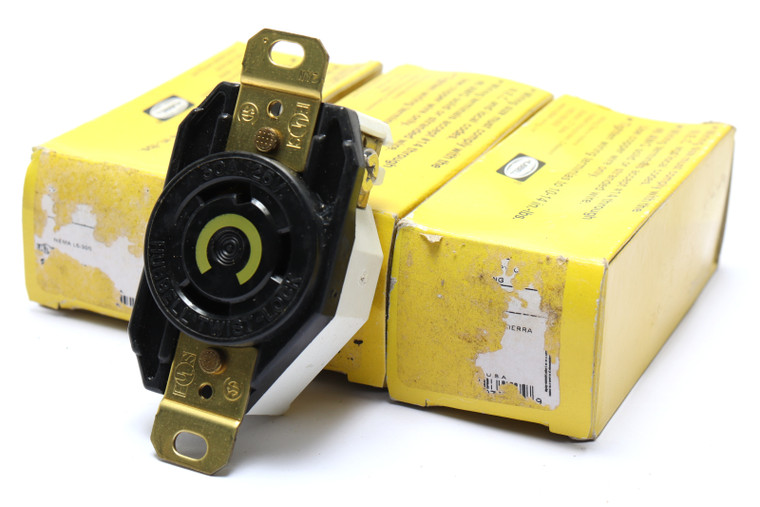

Hubbell NEMA L5-30R Flush Twist Lock Receptacle, 125V 30A, 3pk

Hubbell NEMA L5-30R Flush Twist Lock Receptacle, 125V 30A, 3pk

SKU:
027746
$34.99
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Hubbell NEMA L5-30R Flush Twist Lock Receptacle, 125V 30A, 3pk

Condition:
* New surplus stock, in OEM packaging.
* Boxes Shelf Worn. As pictured.

Additional Notes:
* Horsepower - Maximum: 2
* Item Type: Single Flush Receptacles
* Material: Nylon
* Material - Mounting Hardware: Screw Mounting
* OEM Brand Name: Hubbell Wiring Device-Kellems
* Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
* Electrical - Current Interrupting : Certified for current interrupting at full rated current
* Electrical - Dielectric Voltage: Withstands 2,000V minimum
* Environmental - Flammability: V2 or better per UL94/CSA 22.2 No.0.17
* Environmental - Moisture Resistance: IP20 Suitability
* Environmental - Operating Temperatures: Maximum Continuous 75°C, Minimum -40°C (w/o impact)
* Mechanical - Terminal Accommodation: #16 AWG - #8 AWG solid or stranded copper wire only.
* Mechanical - Terminal Identification: Terminals identified in accordance with UL 498
* Amperage Rating: 30 A
* Connectivity: Ring Terminal
* Current / Amperage Rating: 30 A
* Current Rating: 30 A
* Dielectric Strength: Withstands 2,000V minimum
* Phase: Single Phase
* Voltage Rating: 125 VAC
* Voltage Rating Description: 125 VAC
* Number Of Poles: 2-Pole
* Number Of Wires: 3-Wire
* Wire Size: #16 AWG to #8 AWG

Hubbell
HBL2610RT
