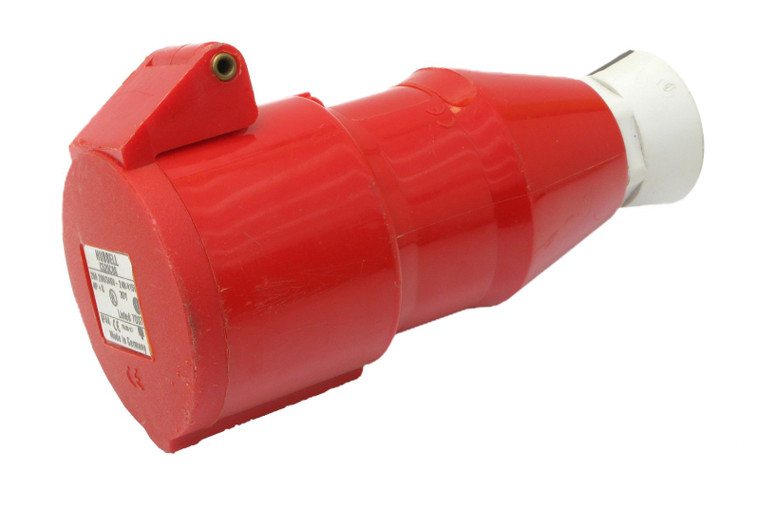

Hubbell C520C6S 240/415VAC 20 Amp Pin & Sleeve Connector Receptacle
Condition:
* Unused spare. Installed, but removed from service before being used. As pictured.
Additional Notes:
* Voltage: 240/415VAC, 3-phase
* Current: 20 Amps
* Wire Range: 14-10AWG
* Poles/Wires: 4 Pole, 5 Wire
* Cord Grip Range: 3/8" to 5/8"
* Housing: Nylon
* Cord Clamp Assembly: Nylon
* Gland Nut: Nylon
* Cover Arm: Nylon
* Cover: Polycarbonate
* Cover Spring 300 Series Stainless Steel
* Gaskets & Seals: Neoprene, EPDM, TPE, Silicone
* Contact Carrier: Reinforced Nylon
* Retainer: Reinforced Nylon
* Phase, Ground Sleeves: Brass
* Terminal: Plated Steel
* Assembly Screws: Stainless Steel (300 Series)
* Weatherproofing: IP44
Hubbell
C520C6S
